Valtra Generators

Generators

When you need the power

Valtra Generators.
Your power plant.

Power is always needed. Critical systems must always be online, whether they're for the safety of humans or animals or production processes that must keep running. After a power cut, damage and losses can occur in a matter of minutes. Valtra generators use the entire range of AGCO POWER engines from Linnavuori with six models from 60 kVA to 250 kVA.

Valtra Generatoren. Prüfstand

TESTED FOR YOU. OVER DECADES.

An emergency power supply must work whenever it's needed. That's why Valtra generators are manufactured with high-quality components and solutions that have proven their worth many times over the years. You have the highest demands for quality. And so do we. For decades, we've been involved in developing industrial products and meeting the requirements of our customers. We know what's expected of us. Our products have been tested to meet the requirements of the cold Arctic as well as the heat of Africa. All engines are checked carefully before assembly and all functions of our generators are tested before being shipped to the customer.

WITH OR WITHOUT
ACOUSTIC INSULATION

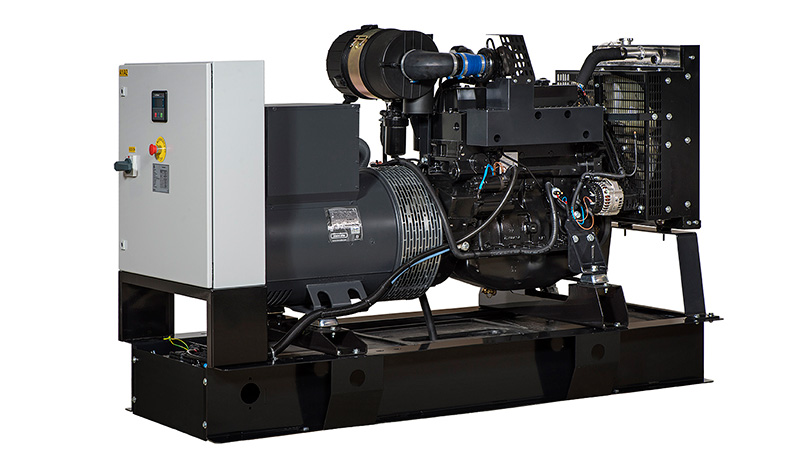

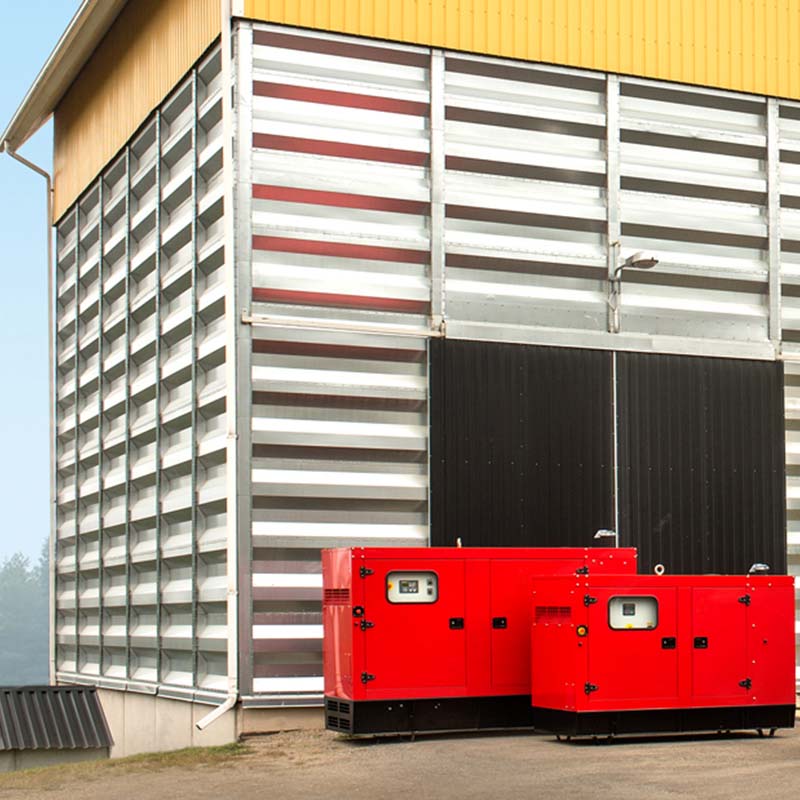

Our power generators are available as open equipment or with enclosed by acoustic insulation for outdoor use. Generators for outdoor use are ready for operation with pre-assembled exhaust pipes and robust support structures.

All generators are designed for stationary use, but thanks to their compact dimensions are also easy to handle and transport.

Valtra Generator vor Stall

CONTROLS FOR ALL REQUIREMENTS

All Valtra generators are available with the same operating modes and functions. Customers can choose between different configurations from manual operation to automatic emergency power supply.

Manually operated generators are designed especially for use in areas where mains power is not available. At remote sites, a diesel generator is often more economical than routing a new power line to the location.

The automatic mechanism starts the engine within seconds of a power cut and switches it off again automatically when the mains power returns. For demanding locations, the power generators can be equipped with automatic operation with synchronisation. With synchronisation, the generator can supply power in parallel to the power supply. This allows a seamless change-over in the event of a power cut, uninterrupted test runs and coverage of peak loads if some loads exceed the amperage of the main fuse.

A STRONG CHOICE FOR DEMANDING TASKS

Model VG60 VG90 VG110 VG150 VG205 VG250
Power Prime (PRP) kVA / kW 60 / 48 90 / 72 110 / 88 150 / 120 205 / 164 250 / 200
Power Standby (LTP) kVA / kW 66 / 53 99 / 79 121 / 97 165 / 132 225 / 180 275 / 220
Engine model (AGCO POWER) 33 DTG 49 DTG 49 DTAG 74 DTG 74 DTAG 84 WIG
Cylinder qty 3 4 4 6 6 6
Rev. speed, rpm 1.500 1.500 1.500 1.500 1.500 1.500
Generator ECP322M4B ECP342S4A ECP341L4A ECP342L4A ECO383S4A ECO381L4A
Power factor, cos φ 0,8 ind. 0,8 ind. 0,8 ind. 0,8 ind. 0,8 ind. 0,8 ind.
Electric system voltage, V 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC 12 VDC
Generator IP protection rating IP23 IP23 IP23 IP23 IP23 IP23
Aggregate nominal voltage, V 400 / 230 400 / 230 400 / 230, 400 / 230 400 / 230 400 / 230
Combustion air, m³/min 5 7,5 10 12,6 17 15,5
Cooling air, m³/min 110 145 174 216 234 300
Opening f. d. cooling air 0,36 0,48 0,55 0,64 0,8 1,0
Aggregate nominal current, A (PRP) 87 130 159 218 296 361
Rated current of the electr. Systems A 125 160 250 250 400 400
Main Fuses, A 100 160 250 250 400 630
Short circuit current, A, 10 s > 261 > 390 > 477 > 654 > 888 > 1.083
Fuel tank capacity (l) 200 / 200 200 / 300 350 / 300 350 / 300 350 / 300 350 / 350
Working hours with full tank at 100% power, (open / weather protected) 13 / 13 8,5 / 13 13 / 11,5 10 / 8,5 7 / 6 7 / 7
Fuel consuption @ 100% PRP (l/h) 14,7 23 26 34 48,5 49
Noise level, weather protected, dB (Lp (7 m) / Lw) 66 / 90,9 71,4 / 96,3 72,7 / 97,6 71,1 / 96 74,2 / 99,1 73,3 / 98,2
Length, open / weather protected (mm) 2.180 / 2.310 2.250 / 2.920 2.650 / 2.920 2.750 / 2.920 2.850 / 2.920 3.220 / 4.210
Width, open / weather protected (mm) 660 / 1.120 660 / 1.150 990 / 1.150 850 / 1.150 990 / 1.150 1.100 / 1.365
Height, open / weather protected (mm) 1.425 / 1.950 1.475 / 2.170 1.625 / 2.170 1.695 / 2.170 1.725 / 2.170 1.780 / 2.150
Dry weight, open / weather protected (kg) 1.000 / 1.400 1.300 / 1.800 1.400 / 1.900 1.600 / 2.100 1.700 / 2.250 2.600 / 3.070

Prime power – PRP (constant power supply with variable electrical loads over an unlimited time) constant according to the ISO standard. Can be used to supply variable electrical loads over an unlimited time. Ten per cent overload capacity for one hour within a 12-hour period.

Emergency power supply – LTP (Limited Time Running Power) (maximum power for a limited time) ISO standard rating blocked. Can be used for supplying variable electrical loads over a limited time. No overload capacity.

Control system
ComAp InteliNano / InteliLite / InteliGen
