VALTRA FRONT LOADERS
LIFT MORE. DO MORE. EVERY DAY.
Clear loader visibility – Valtra’s famous sloping bonnet
Tractor agility retained
Smart, natural controls
Unlimited-ready customisation
BUILT INTO THE TRACTOR. BUILT FOR REAL WORK.
Lift, load and work with confidence. A factory-fitted Valtra front loader gives you built-in strength, clear visibility, tractor agility and natural control for everyday farm tasks.
WHY CHOOSE VALTRA FRONT LOADERS?

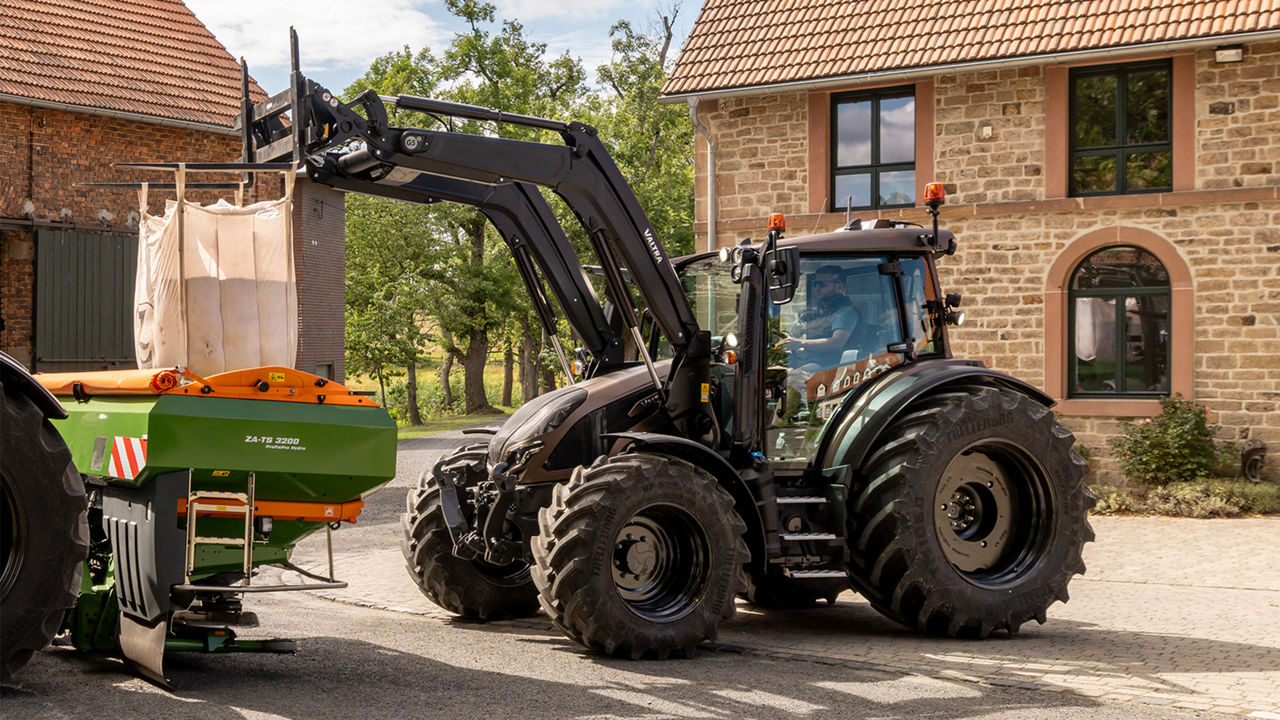

Start work with confidence. Your Valtra front loader is factory-fitted with a strong integrated subframe and matching finish, so it arrives ready for daily loader work.

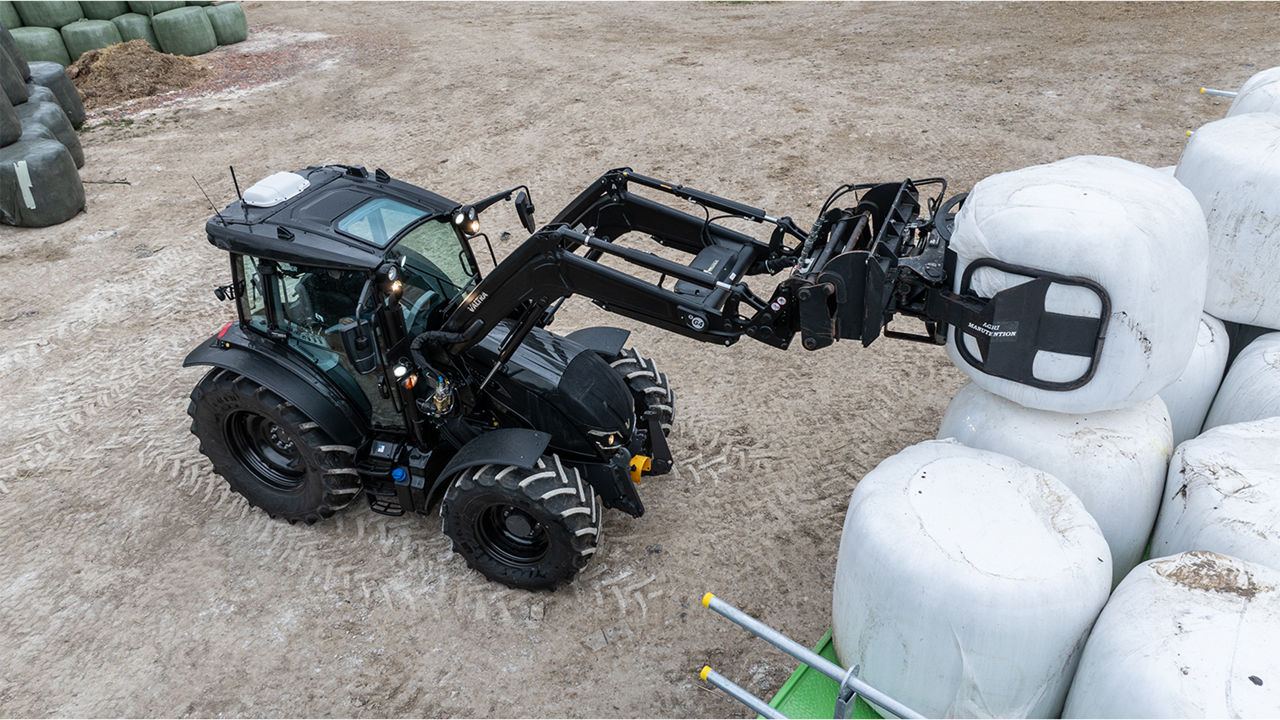

Work more accurately with less fatigue. The sloping bonnet and large windows give a clearer view of the loader, implement and working area.
Work confidently in tight spaces. The loader does not change the tractor’s tight turning radius, helping in yards, sheds and gateways.
Control the loader in the way that suits your work. Valtra offers mechanical, electric, Valtra Arm and SmartTouch options to match the tractor, operator and job.

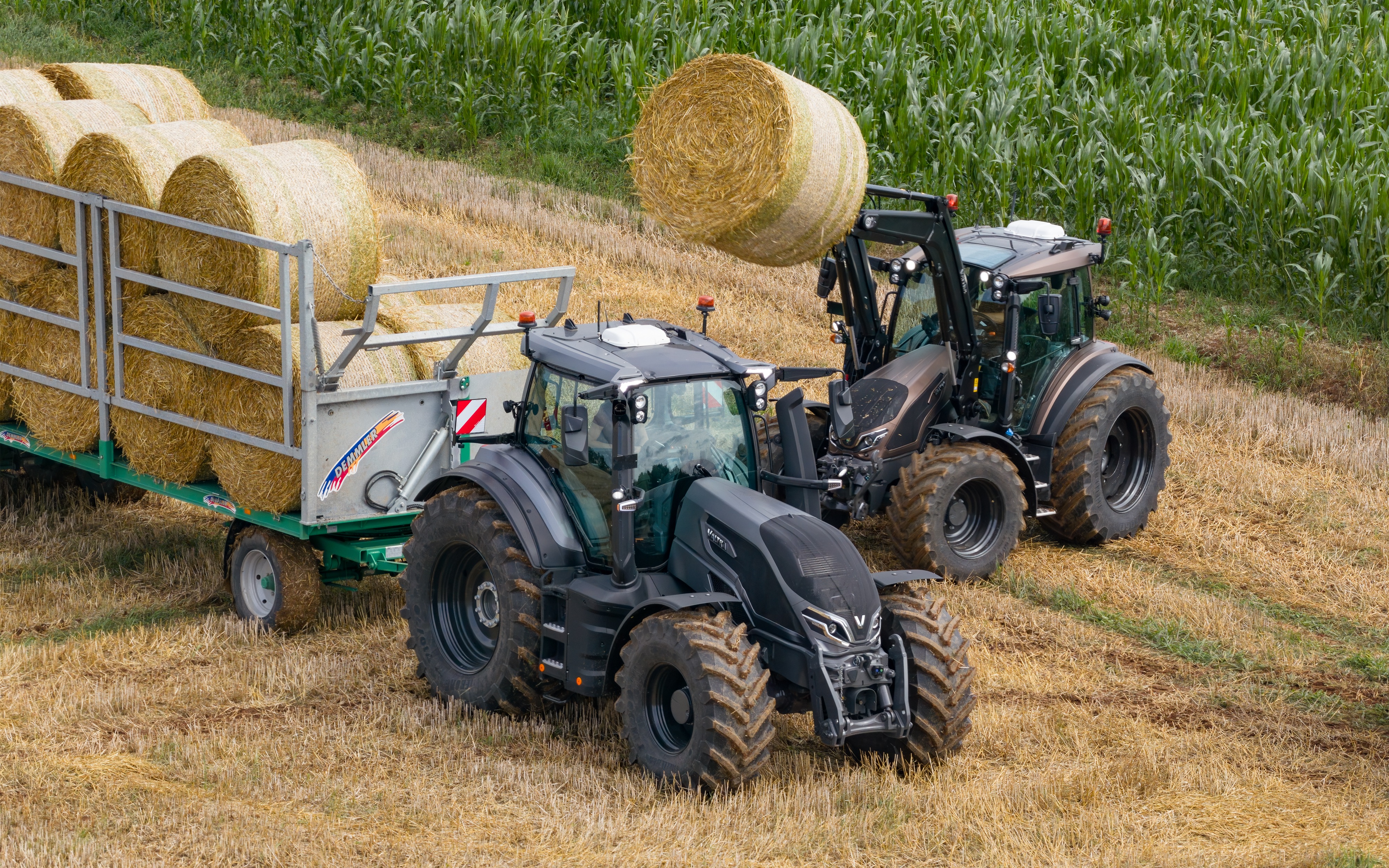

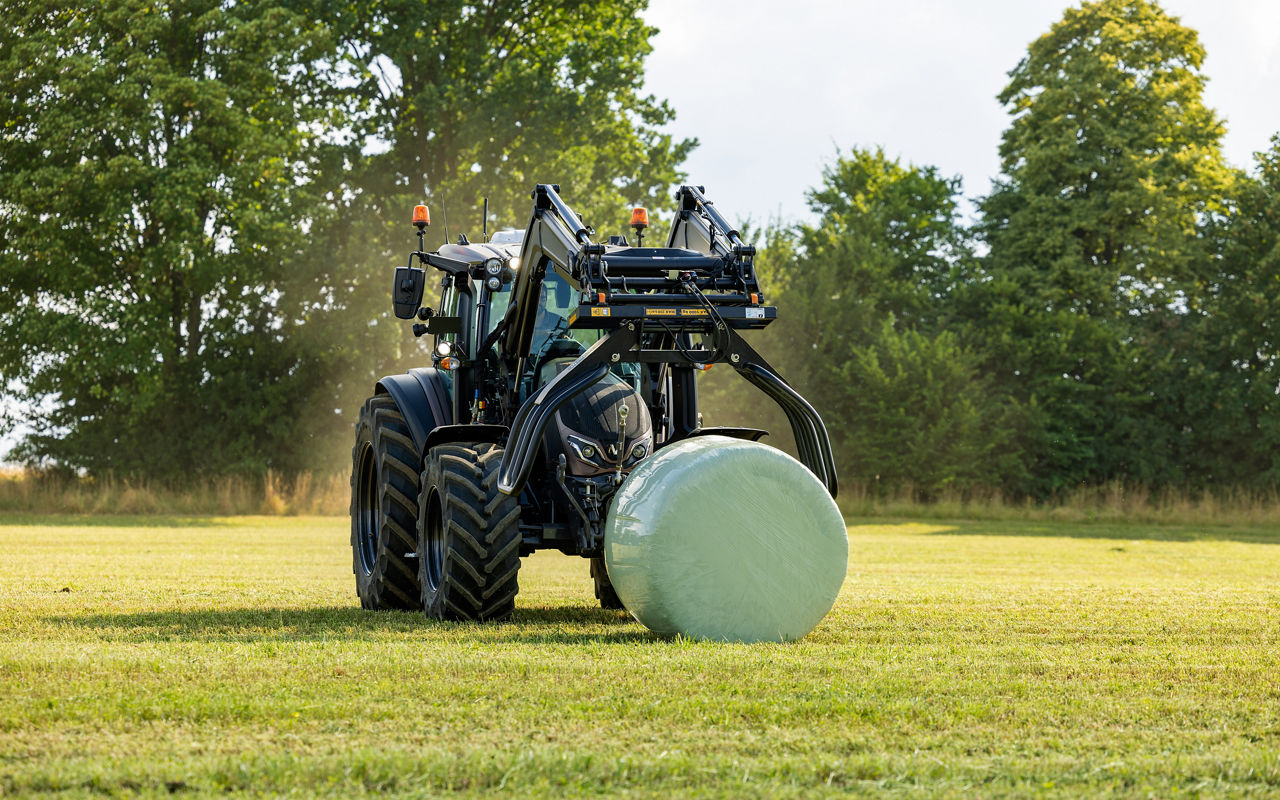

Handle more daily work with one tractor. Valtra front loaders are built for feeding, bale handling, loading and clearing, with the versatility for contracting, municipal work, road maintenance, grass cutting, airport operations and snow removal.

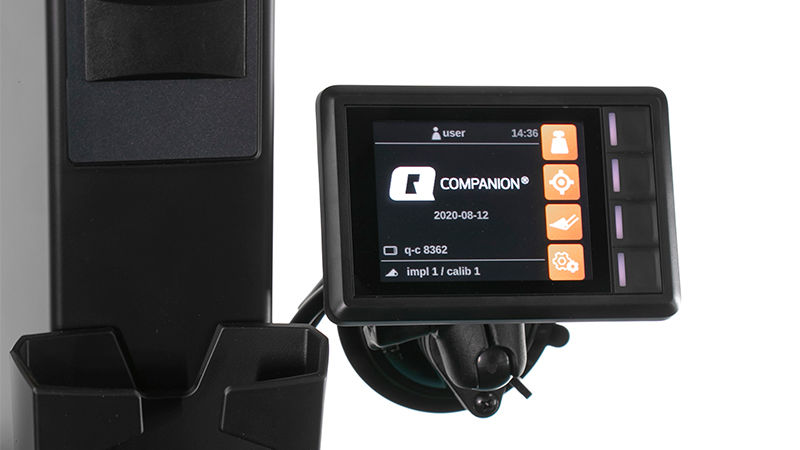

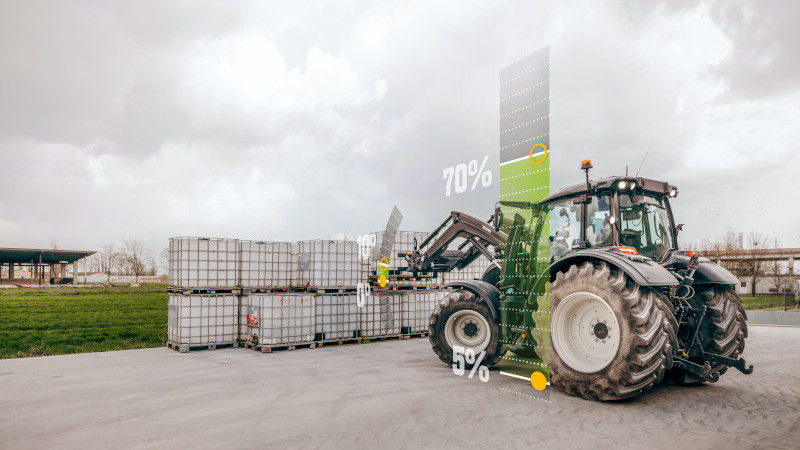

Work with more precision when the job demands it. Precision Lift & Load adds weighing, task data and automated actions, and is best kept as an advanced SmartTouch-led option.

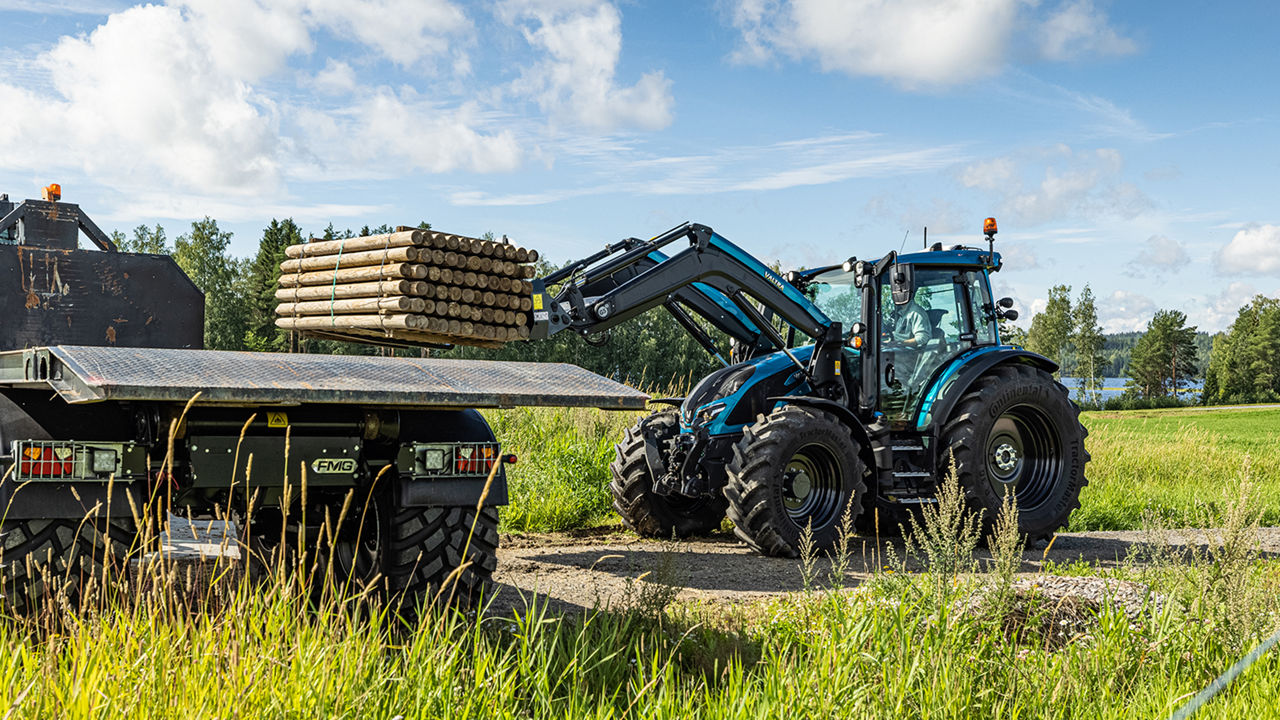

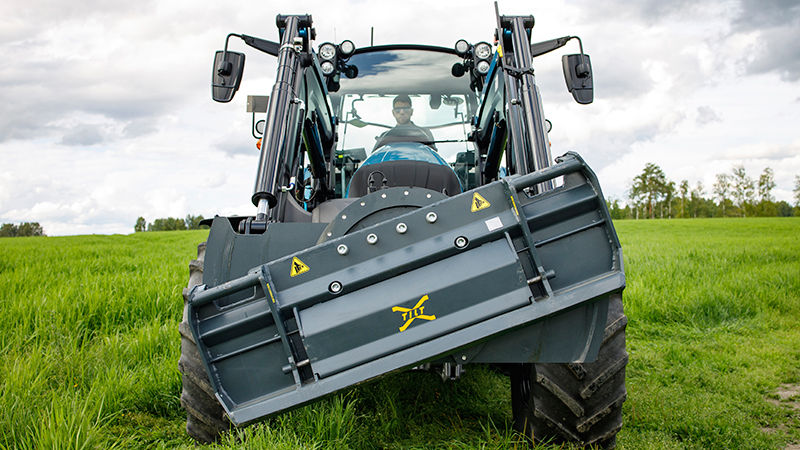

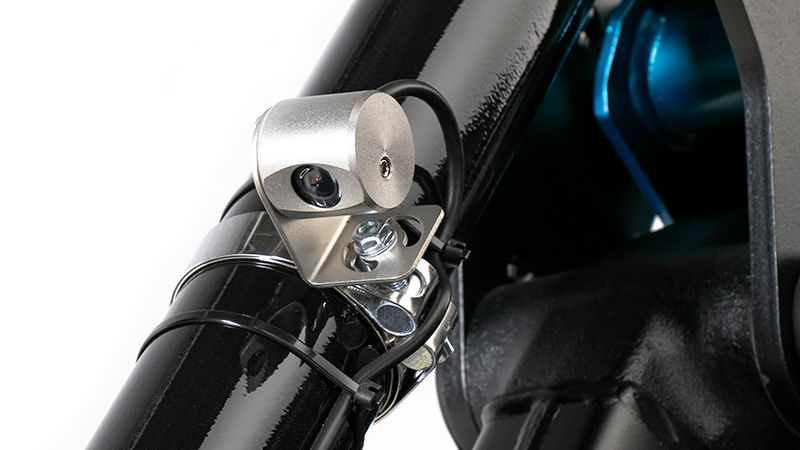

When standard specifications are not enough, Valtra Unlimited can add factory-fitted solutions such as X-Tilt, extra lights, cameras, loader colour matching, central lubrication and other tailored equipment.
STRONG FROM THE CHASSIS UP
EASIER TO SEE, EASIER TO PLACE
READY FOR THE WAY YOU WORK
ADVANCED LOADER OPTIONS AND IMPLEMENTS
When your loader work asks for more.
Most farms benefit most from factory fit, visibility, agility and easy control. For specialised loader work, advanced features and Unlimited options add even more capability.

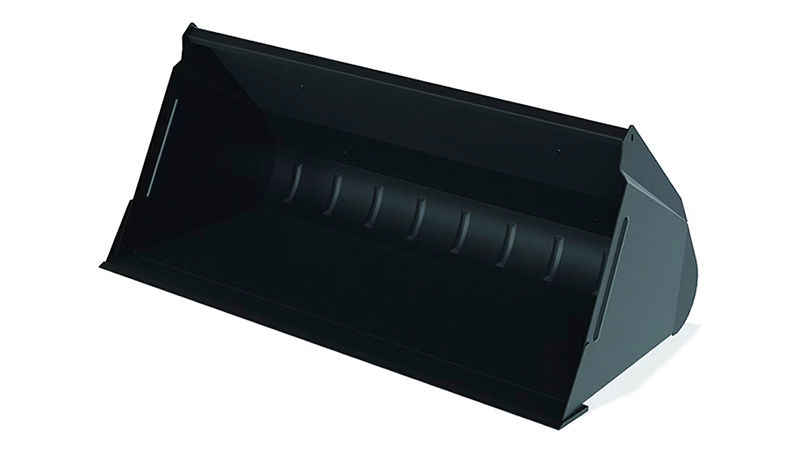

BUCKETS

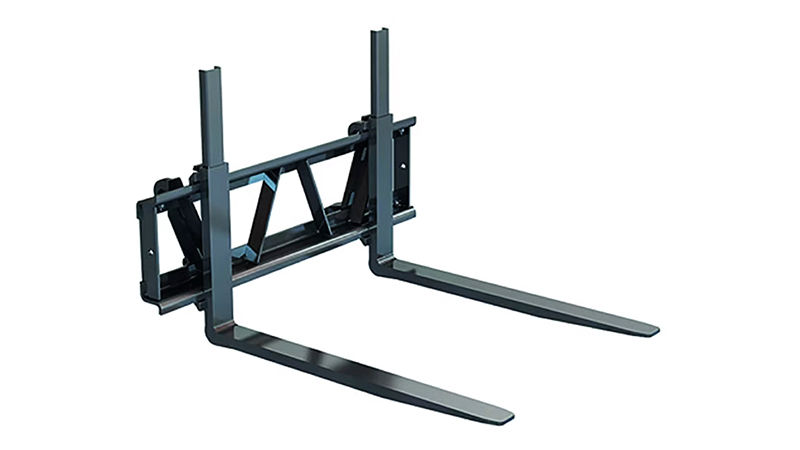

PALLET FORKS

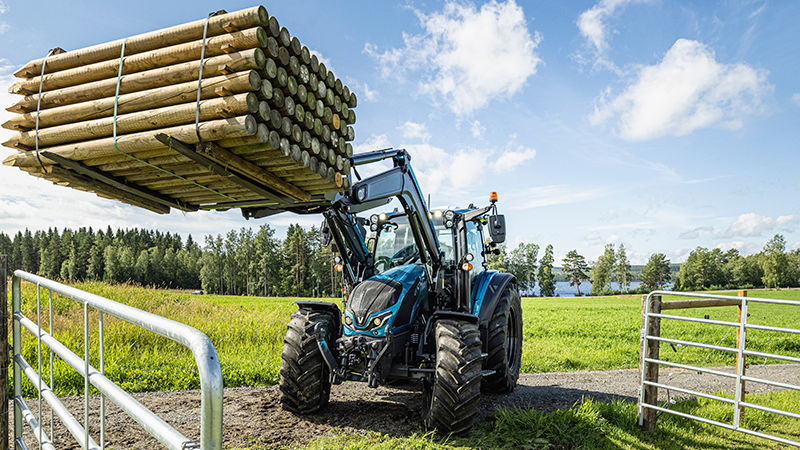

TOOL CARRIERS
PROVEN BY USERS. TRUSTED IN DAILY WORK.
CHOOSE YOUR CONTROL
Valtra front loader controls match the tractor, operator and task, from mechanical A Series control to integrated SmartTouch, making loader work easier, more accurate and more comfortable.
- SMARTTOUCH
- VALTRA ARM
- ELETRICAL ARMREST
- ERGODRIVE
"I want full control, automation and smart farming built in."
SMARTTOUCH
Fully integrated electronic control with customisable hydraulic functions, helping reduce workload and improve precision.
Best for:
High-use loaders, professional operators and maximum control.
Daily loading, contracting, municipal work, precision handling, repetitive tasks and multi-operator fleets.
Available with:
Versu and Direct models, and all Q Series tractors
"I want the tractor to do more of the work for me but keep it simple."

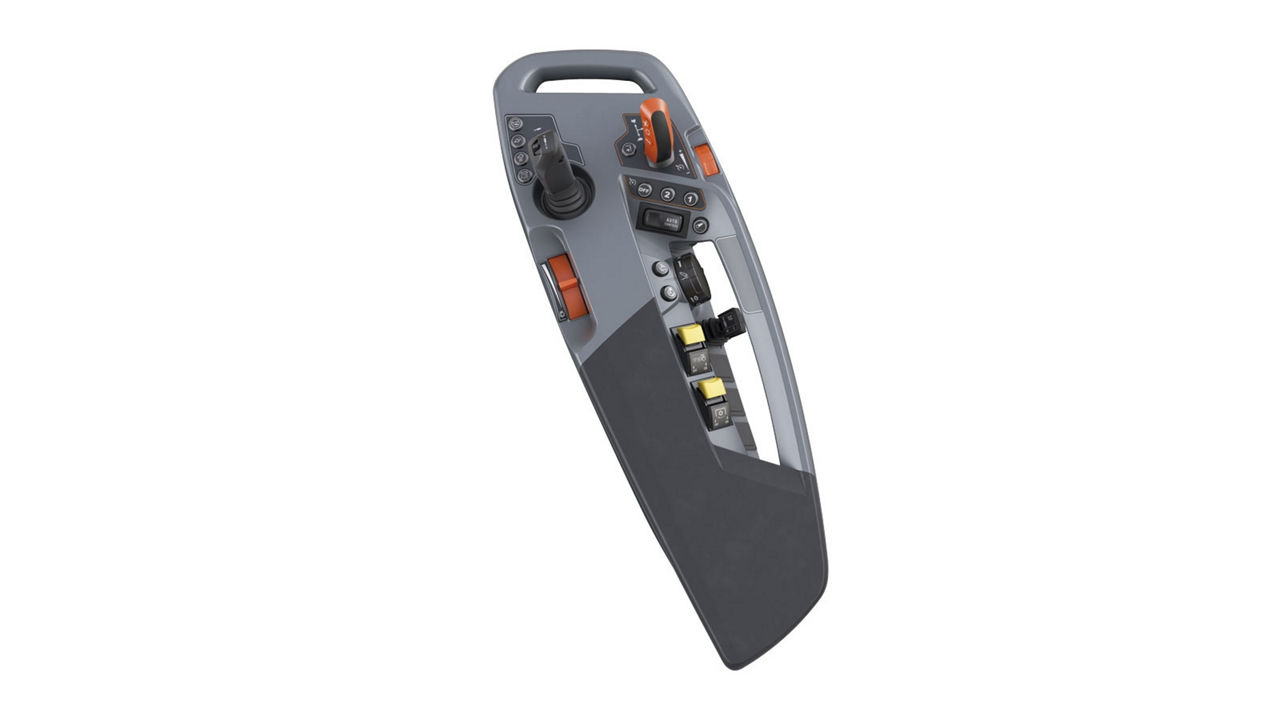

VALTRA ARM
Dedicated hydraulic joystick with integrated tractor controls, plus hydraulic assistant on G, N and T models to support loader work.
Best for:
Farms and contractors needing precise loader control without full SmartTouch.
Mixed farming, bale handling, feeding, yard work, loading and regular front loader use.
Available with:
HiTech and Active models on G, N and T Series tractors
"I want precise front loader control in a compact and straightforward tractor."

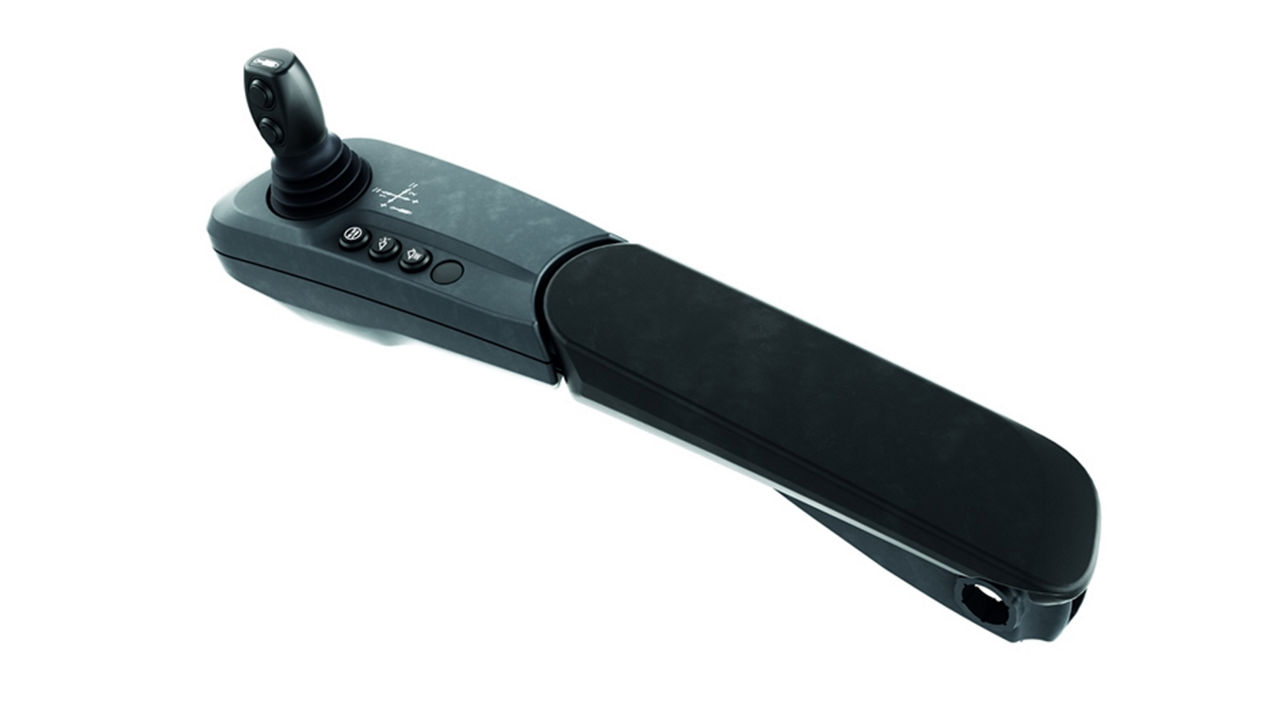

ELECTRICAL ARMREST
Joystick and push-button control from the armrest, giving precise loader operation in a compact tractor package.
Best for:
A Series operators who want smooth, easy electric control.
Livestock farms, mixed farms, property work, daily yard tasks and general material handling
Available with:
A Series tractors.
"I want simple and easy ergonomic control of my A Series front loader"

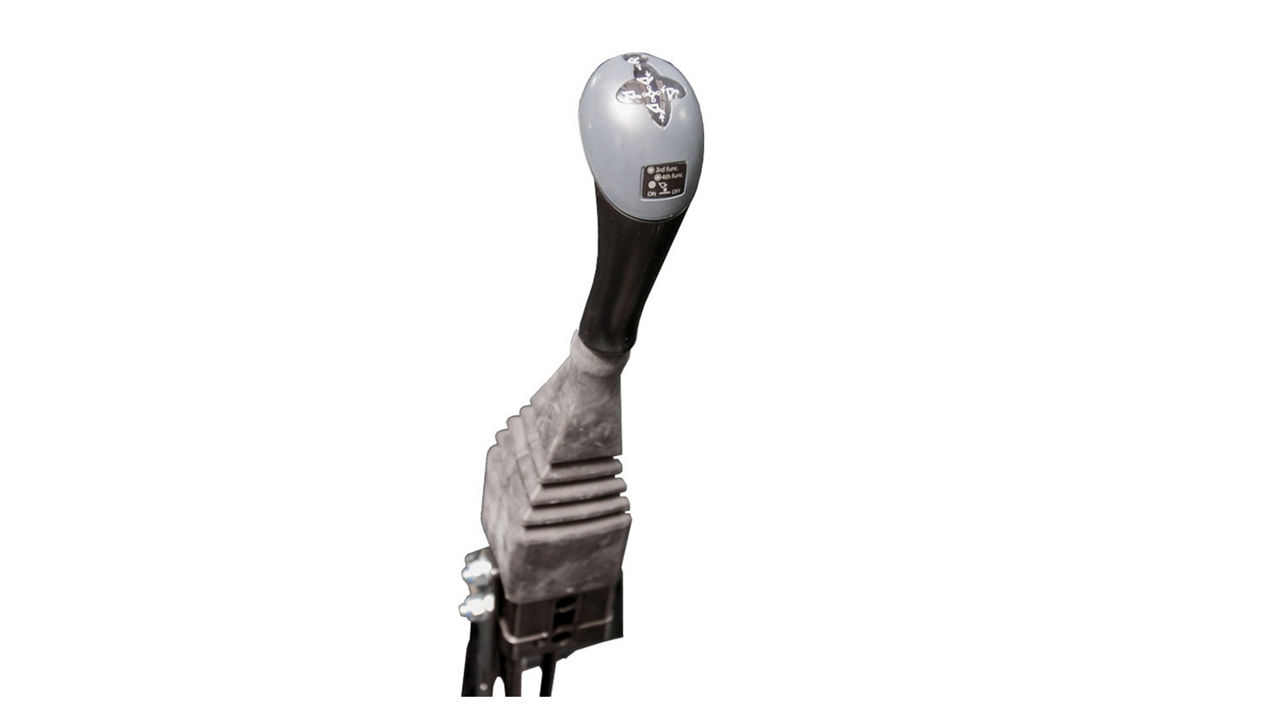

ERGODRIVE
Adjustable mechanical lever positioned close to the driver, with support for optional 3rd and 4th loader functions.
Best for:
Operators who prefer simple, reliable mechanical control.
Straightforward loader work, occasional loading, feeding, bale handling and general farm tasks.
Available with:
A Series tractors.
CHOOSE YOUR FRONT LOADER TRACTOR
FRONT LOADER SPECIFICATIONS
| LOADER MODEL | TRACTOR MODEL SERIES | Weight -Front loader** | Maximum Lift Height -Pivot Pin | Maximum Dump Angle at Max height | Maximum Rollback Angle (Re-scooped) | Loader reach, front tip of bucket | Lift Capacity to Maximum Height | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | G | N | T | Q | |||||||
| G3S | A75-A95 | 520 | 3,55 | 58 | 58 | 2 895 | 1 550 | ||||
| G3L | A75-A115 | 525 | 3,81 | 53 | 58 | 3 100 | 1 740 | ||||
| G4* | A105-A115 H4 | 515 | 3,79 | 58 | N/A | 3 025 | 1 290 | ||||
| G4S | A105-A135 | 575 | 3,79 | 58 | 58 | 3 025 | 1 920 | ||||
| G4S ext | G105-G135 | 575 | 3,79 | 58 | 58 | 3 025 | 1 920 | ||||
| G4M ext | G105-G135 | 575 | 3,79 | 58 | 58 | 3 025 | 2 260 | ||||
| G4L | A105-A115 H4 | G105-G135 | 580 | 4,02 | 54 | 60 | 3 210 | 1 780 | |||
| G5* | G105-G135 | N135-N175 | 560 | 4,06 | 56 | N/A | 3 155 | 1 300 | |||
| G5S | A105-A135 | G105-G135 | N135-N175 | 620 | 4,06 | 57 | 58 | 3 155 | 1 980 | ||
| G5M | N135-N175 | 620 | 4,06 | 57 | 58 | 3 155 | 2 300 | ||||
| G5L | A105-A115 H4 | G105-G135 | N135-N175 | 625 | 4,2 | 54 | 58 | 3 260 | 1 930 | ||
| G6S | N135-N175 | 720 | 4,25 | 57 | 58 | 3 360 | 2 140 | ||||
| G6S ext* | T145-T255 | Q225-Q305 | 720 | 4,25 | 57 | 58 | 3 360 | 2 140 | |||
| G6M ext* | T145-T255 | Q225-Q305 | 720 | 4,25 | 57 | 58 | 3 360 | 2 470 | |||
| G6L | T145-T255 | Q225-Q305 | 750 | 4,55 | 53 | 59 | 3 620 | 1 980 | |||
| G7S | T145-T255 | Q225-Q305 | 760 | 4,6 | 54 | 58 | 3 595 | 2 170 | |||
| G7M | T145-T255 | Q225-Q305 | 760 | 4,6 | 54 | 58 | 3 595 | 2 490 | |||
| G7L | T145-T255 | Q225-Q305 | 820 | 4,75 | 53 | 58 | 3 770 | 2 000 | |||
- * ) G4 and G5 are non self-levelling; for special use only
- ** ) Loader weight not including subframe or implement
- NOTE: that in N135 a HD front axle is needed.
- NOTE: In T Series and Q Series loaders 6S ext and 6M ext only without front lift.
| LOADER MODEL | TRACTOR MODEL SERIES | Weight -Front loader** | Maximum Lift Height -Pivot Pin | Maximum Dump Angle at Max height | Maximum Rollback Angle (Re-scooped) | Loader reach, front tip of bucket | Lift Capacity to Maximum Height |
|---|---|---|---|---|---|---|---|
| X36 | A75-A95 | 390 | 3,4 | 50 | 44 | 2 540 | 1 520 |
| X41* | A105-A115 H4 | 360 | 3,7 | 49 | N/A | 2 660 | 1 010 |
| X46 | A105-A135 | 420 | 3,7 | 49 | 42 | 2 660 | 1 590 |
| X51* | A105-A115 H4 | 390 | 3,9 | 46 | N/A | 2 800 | 1 080 |
| X56 | A105-A115 H4 | 440 | 3,9 | 46 | 43 | 2 800 | 1 680 |
- * ) X41 and X51 are non self-levelling; for special use only
- ** ) Loader weight not including subframe or implement
FAQs - VALTRA FRONT LOADERS
Yes. Valtra front loaders are factory-fitted with an integrated subframe, including multiple anchor points for strength and the same high-quality finish as the tractor for lasting durability.
A factory-fitted Valtra front loader works as part of the tractor, giving strong installation, good visibility, easy maintenance access and natural controls.
Valtra front loaders handle farm, bale, feeding, municipal, snow and airport maintenance tasks, with tool carriers and implements to suit daily handling work.
No. Valtra tractors are designed so that the tight turning radius is unchanged by the loader. This helps operators work confidently in confined spaces such as yards, sheds, gateways and busy working areas.
Valtra front loader controls depend on the tractor model and specification. Options include mechanical Ergodrive control, electric armrest control, Valtra Arm control on HiTech and Active models, and SmartTouch control on Versu and Direct models and Q Series tractors.
Precision Lift & Load is Valtra’s smart front loader feature that helps make loader work more accurate and repeatable. It can weigh the load, store task data and automate useful actions such as shaking the bucket or returning the loader to the work position.
