Valtra F Series Tractors
75–101 HP
SPECIALIST TRACTORS FOR PRECISE ORCHARD AND VINEYARD WORK
Specialist master ~1.3 m wide
Turn in just ~3.6 m with a 55° steering angle
Up to ~3 t lift capacity in a compact specialist machine
THE SPECIALIST TRACTOR BUILT AROUND YOUR CROP
The most compact tractor in its class.
WHY CHOOSE THE F SERIES?
Work confidently in tight vineyard rows and orchard spacing. With narrow models from just ~1.3 m and wider orchard options, the F Series is built for specialist cultivation where every centimetre matters.
Keep working where standard tractors cannot. Low‑profile models and ROPS configurations allow operation in restricted environments, with working heights as low as ~1.4 m (folded ROPS) and specialised low‑chassis design for pergola and low‑branch work.
Move accurately between rows and around crops without stress or wasted time. A tight turning radius of around 3.6 m and up to 55° steering angle provide exceptional manoeuvrability for headland turns and close‑quarters operation.
Operate demanding implements without stepping up in size. The F Series delivers strong hydraulic performance and lift capacity of up to ~3 t, supporting specialist tools essential for vineyard and orchard operations.
Choose a cab for comfort, visibility and a controlled working environment, or a platform (ROPS) for simplicity and minimal height, with both options designed specifically for specialist crop work.
READY TO CHOOSE THE F SERIES?
THE F SERIES AT A GLANCE
75-101 hp | Compact. Specialist. Diverse.
The Valtra F Series is built for precise orchard and vineyard work, where space is tight, crops are valuable and accuracy matters. Compact dimensions, operator protection and controlled handling help you work between rows, under canopies and close to crops. With a choice of widths, heights, chassis types and cab or open options, you can specify an F Series tractor to fit your crop and working environment.
Designed for narrow rows, controlled environments and precise daily tasks
YOUR F SERIES MODELS AT A GLANCE
The F Series is a true specialist, with configurations to match your crop and working environment.
WHICH F SERIES IS RIGHT FOR YOU?
The F Series is not built as a single configurable machine. It is a set of clearly defined specialist tractor models, each designed for a specific working environment. Choose low models for orchards and pergolas, narrow models for tight vineyard rows, open platforms with folding ROPS for low spaces and easy access, or a comfortable narrow cab for protected daily work.

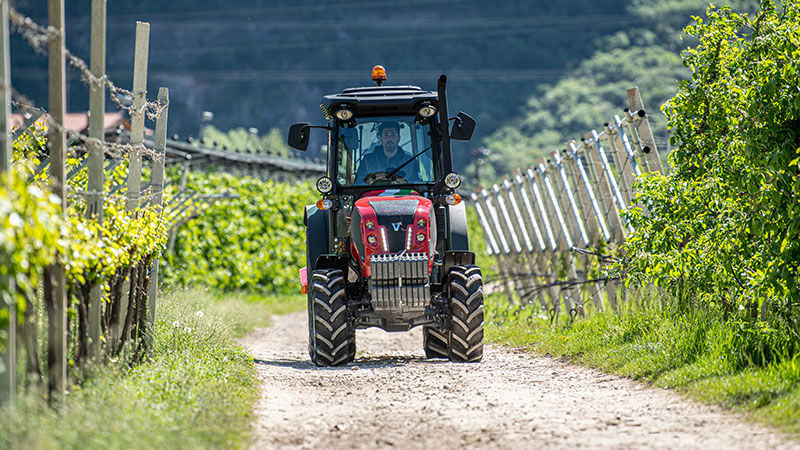

NARROW CAB MODEL
Perfect for vineyards and narrow specialist row crops.

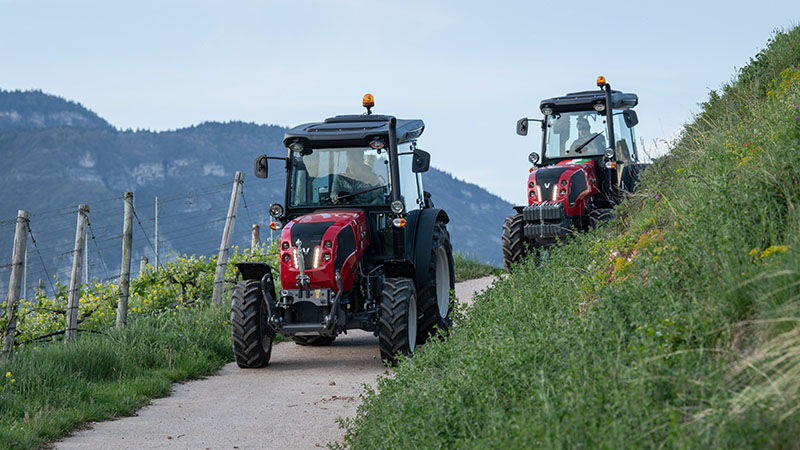

STANDARD MODEL WITH CLOSED CAB
Perfect for orchard work where a protected work environment and comfort are needed.
Choose the narrow cab model when every centimetre counts. Starting from around 1.3 m wide, it gives vineyard operators protected, heated and air-conditioned comfort, precise control and confidence in tight rows.
Choose the standard cab model for comfortable, protected orchard work. From around 1.5 m wide, with cab height under around 2.5 m, it gives operators a heated, air-conditioned workspace and the versatility to handle varied seasonal tasks.

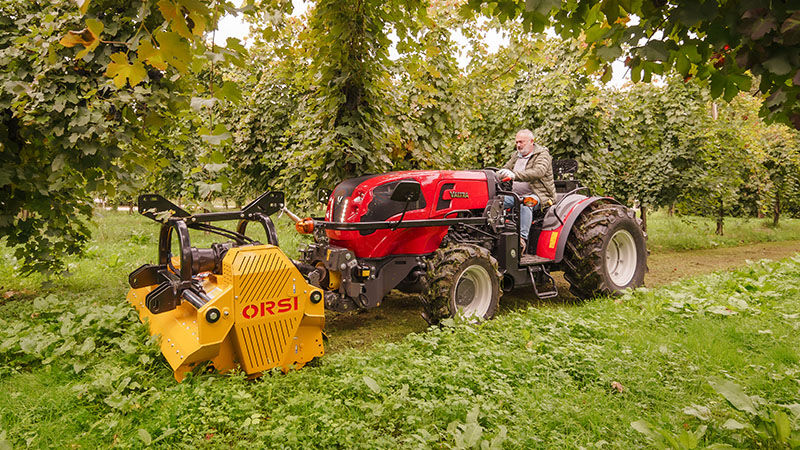

STANDARD LOW MODEL
Perfect for working under low canopies and pergolas.

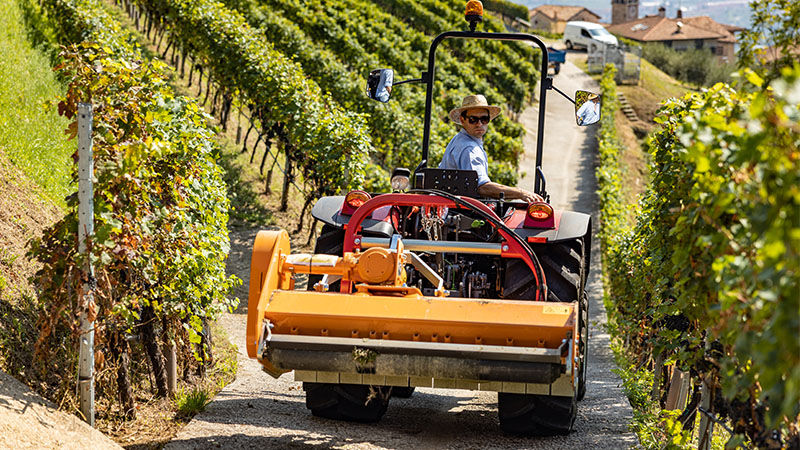

STANDARD OPEN CAB MODEL (ROPS)
Perfect for orchard work under canopies.
Choose the Standard Low model for the lowest working environments. With 20” rear wheels, lower mudguards and a lower operating position, it helps growers work confidently under pergolas, very low canopies and other low-clearance spaces.
Choose the standard open platform model for low canopy access and simple, direct operation. Around 1.5 m wide and as low as around 1.4 m with the ROPS folded down, it helps orchard and specialist crop operators work confidently under branches, covered structures and pergola systems.
COMPARE F SERIES MODELS
| Model | Key Identifiers | Best suited for | Your Benefits |
|---|---|---|---|
| Narrow Cab Model | ~1.3 m width, enclosed cab | Vineyards with tight row spacing | Fits confidently between narrow rows with precision, while still providing operator comfort |
| Standard Model with Closed Cab | ~1.5 m width, cab height < ~2.5 m | Orchard work, mixed fruit farms | Comfortable all-day working with protection and flexibility across a wide range of tasks |
| Standard Low Model (SL) | Lower overall profile, smaller wheels, reduced working height | Pergolas, very low canopy crops | Maximum access in restricted environments where height is the biggest limitation |
| Standard Open Cab Model (ROPS) | ~1.5 m width, height down to ~1.4 m (ROPS folded) | Low branches, covered crops | Minimal height and simple access, ideal for working under obstacles without restriction |
| Dimensions | Standard | Narrow |
|---|---|---|
| Length (mm) | 3980 | 3980 |
| Height, cab model (rear wheels 380/70R28), mm | 2478 | 2478 |
| Width, mm | 1544 to 1944 | 1278 to 1785 |
| Weight, cab model, kg | 3050 | 2940 |
| Wheelbase, mm | 2154 | 2178 |
A SIMPLE WAY TO DECIDE ON THE BEST F SERIES MODEL FOR YOUR OPERATION
If you’re unsure, start here:
- Tight vineyard rows? → Narrow Cab
- Low canopy or pergola work? → Standard Low or Standard ROPS
- General orchard work? → Standard Cab
If you're still unsure, your expert Valtra Dealer is here to help guide you through choosing the perfect F Series for your set-up.

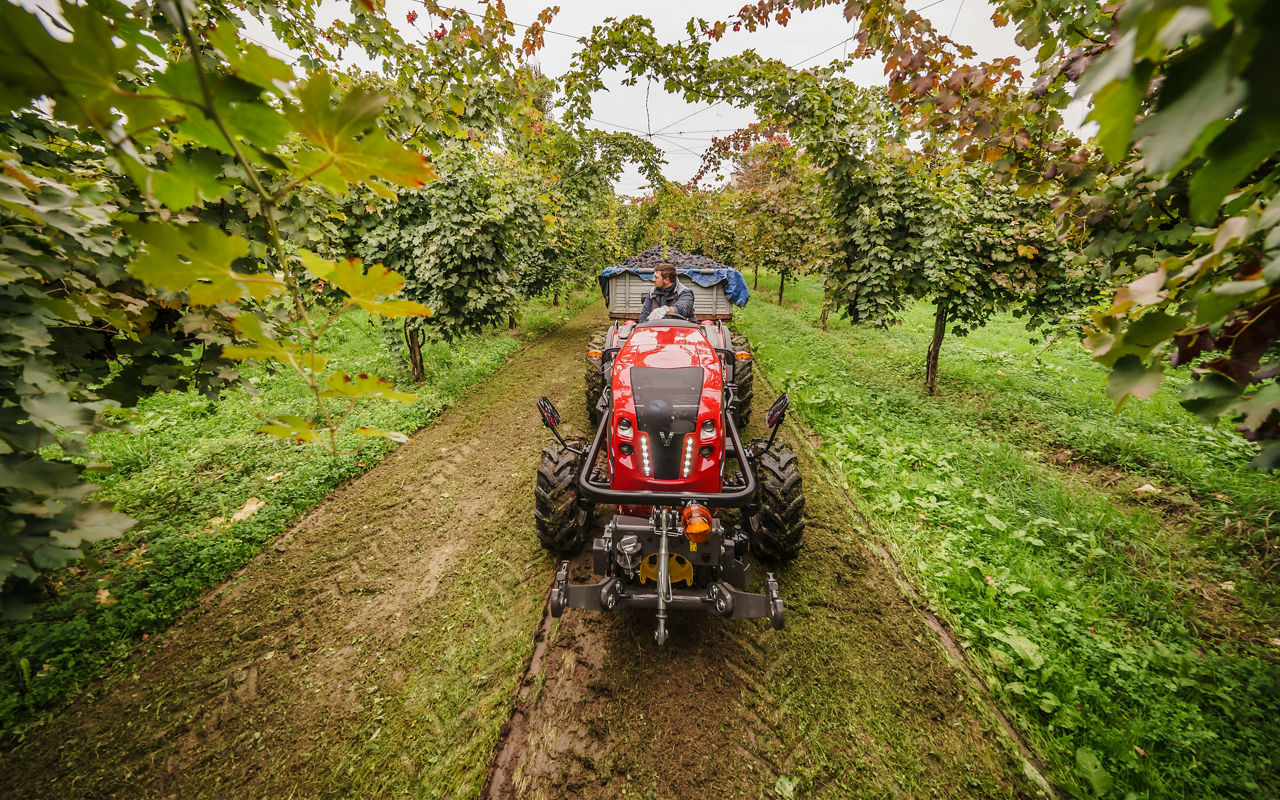

TRANSMISSION THAT MATCHES HOW YOU WORK
The F Series gives you three clear options, each designed for a different way of working. Whether you prioritise simplicity, flexibility, or maximum comfort, there is a configuration that fits your rows, your tasks and your operators.
CHOOSE YOUR F SERIES TRANSMISSION
WHY THIS MATTERS IN SPECIALIST WORK

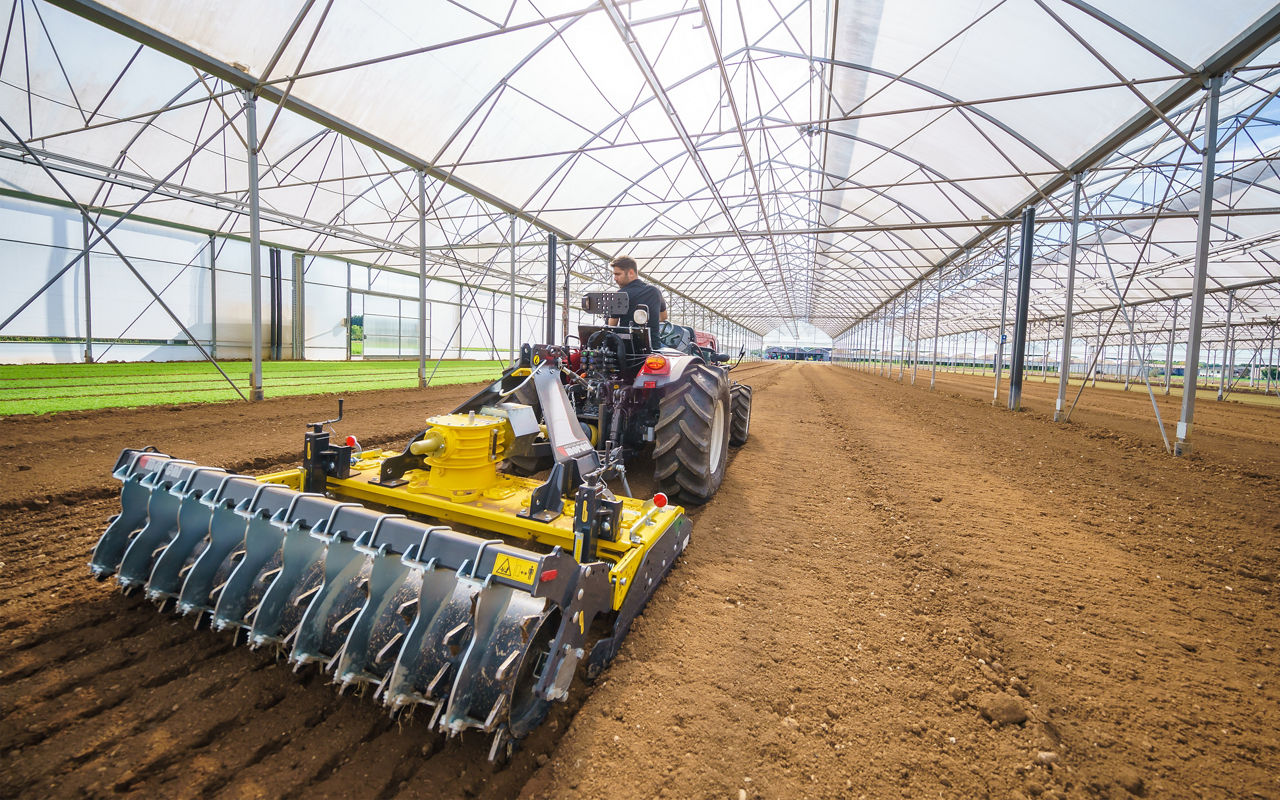

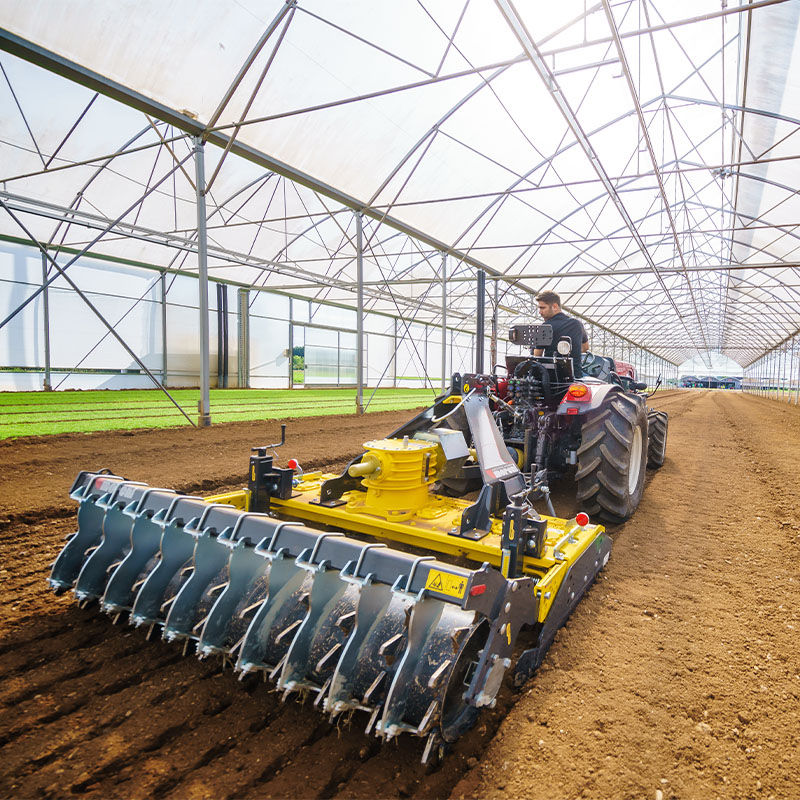

RESPONSIVE HYDRAULICS FOR SPECIALIST WORK
Compact size. Precise control. Capability where it matters.
The F Series delivers the hydraulic control, responsiveness and lift capacity needed for demanding orchard and vineyard implements, without compromising on agility and compact dimensions by stepping up in tractor size.
RUN MODERN IMPLEMENTS SMOOTHLY IN TIGHT ROWS
CONFIGURE THE TRACTOR AROUND YOUR TOOLS
COMPACT TRACTOR. REAL LIFTING CAPABILITY
| TECHNICAL DATA, HYDRAULICS (BOTH STD AND NARROW MODELS | 2 PUMPS | 3 PUMPS |
|---|---|---|
| Oil flow max l/min | 60 + 27 | 60 + 27 + 27 |
| Availability of service valves | 2 or 3 | 2, 3 or 4 |
| Optional front quick couplers | 2 pairs | 2 or 3 pairs |
| Power lift capacity, tons | 2,6 or 3 | 2,6 or 3 |
| Optional Front Lift, capacity tons | 1,8 | 1,8 |
| TECHNICAL DATA, PTO | 540/1000 | 540/540E |
|---|---|---|
| Independent PTO with mechanical clutch (Synchro shuttle models) | x | x |
| Independent PTO with hydraulic clutch (power shuttle models) | x | x |
| Ground Speed PTO | Option | Option |
| Front PTO (1000 r/min, only with Front Lift | Option | Option |
EASY TO OWN. EASY TO LIVE WITH.
The F Series is built to keep ownership simple, predictable and focused on getting work done.
DESIGNED TO REDUCE DOWNTIME AND KEEP YOU WORKING
COMPACT DESIGN WITH PRACTICAL SERVICE ACCESS
BUILT FOR LONG-TERM VALUE IN SPECIALIST WORK
FAQs - VALTRA F SERIES
- Choose the Narrow Cab model for vineyard work with tight row spacing
- Choose the Standard Cab model for general orchard work and long working days
- Choose the Standard ROPS model for lower-height environments and simple operation
- Choose the Standard Low model for extreme low-canopy or pergola conditions
No. Narrow models are only available with an enclosed cab, designed to provide a controlled working environment for vineyard operations.
Low-profile versions are available as Standard Low models, designed primarily for low canopy and pergola work. These are based on the standard-width platform, not the narrow vineyard model.
The F Series offers three transmission choices: a simple 12 + 12R mechanical option, a cost-effective 24 + 24R mechanical transmission with synchromesh shuttle for the right speed in varied tasks, and a 24 + 12R power shuttle with powershift for greater comfort, efficiency and ease of use.
Yes. Despite its compact size, the F Series delivers strong hydraulic performance with up to ~97 l/min flow and rear lift capacity up to ~3 tonnes, supporting demanding specialist implements.
Yes. The F Series is designed around proven, straightforward systems with easy access for daily checks and maintenance, helping reduce downtime and keep ownership predictable.
The F Series is built for:
- Vineyards with narrow row spacing
- Orchards with varying canopy heights
- Pergola systems and low-clearance crops
- Greenhouses and specialist cultivation
It is not intended as a general-purpose or field tractor, but as a dedicated specialist machine.
VALTRA F SERIES TRACTOR PRODUCT SUMMARY
Valtra F Series tractors (75–101 HP) are compact specialist machines designed for orchard, vineyard and narrow‑row cultivation, where precision, access and control are critical. The range includes four clearly defined configurations:
- Narrow Cab for vineyards
- Standard Cab for orchard work
- Standard ROPS for low-height environments
- Standard Low for extreme canopy restrictions.
With widths starting from approximately 1.3 m, low-profile options for pergola work, and manoeuvrability supported by a tight turning radius, the F Series enables confident operation in confined, high‑value crop environments.
Despite its compact dimensions, the F Series delivers strong hydraulic performance and lifting capability, allowing it to handle modern specialist implements without requiring a larger tractor.
The result is a tractor range designed not for general farming tasks, but for precise, repeatable work in specialist crops, helping operators maximise productivity, protect crops, and work efficiently in environments where space and accuracy matter most.
