The Valtra F Series

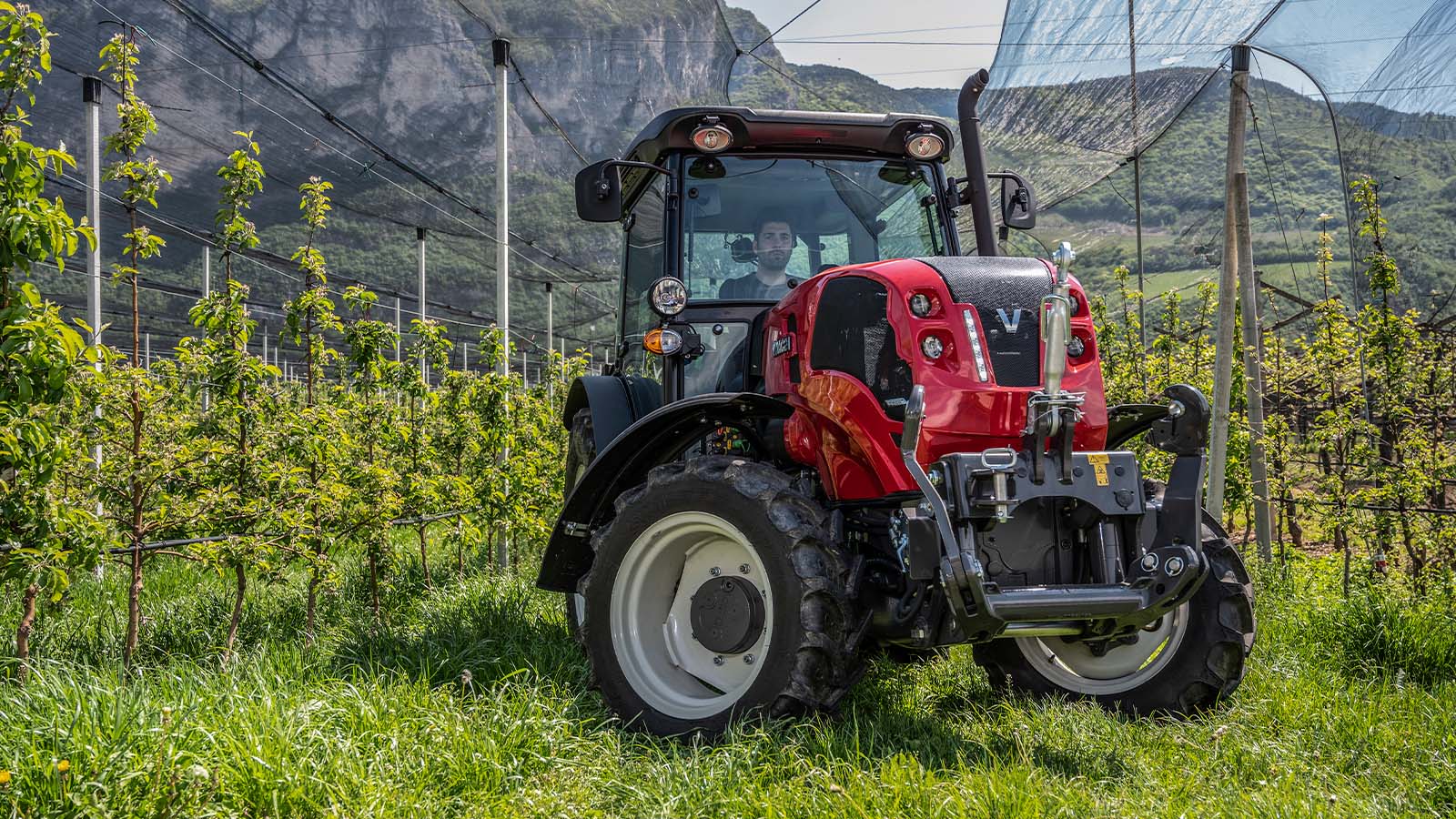

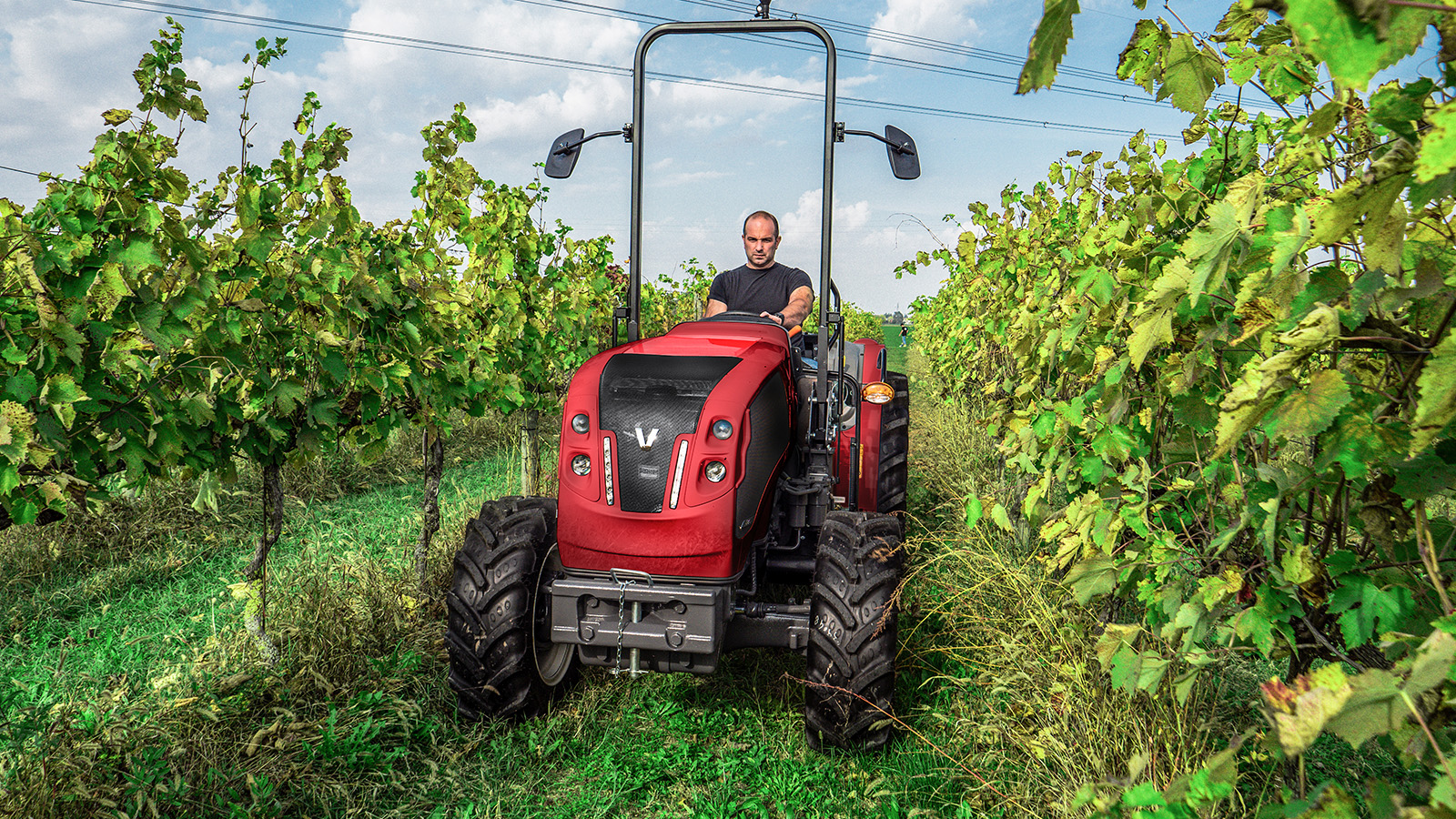

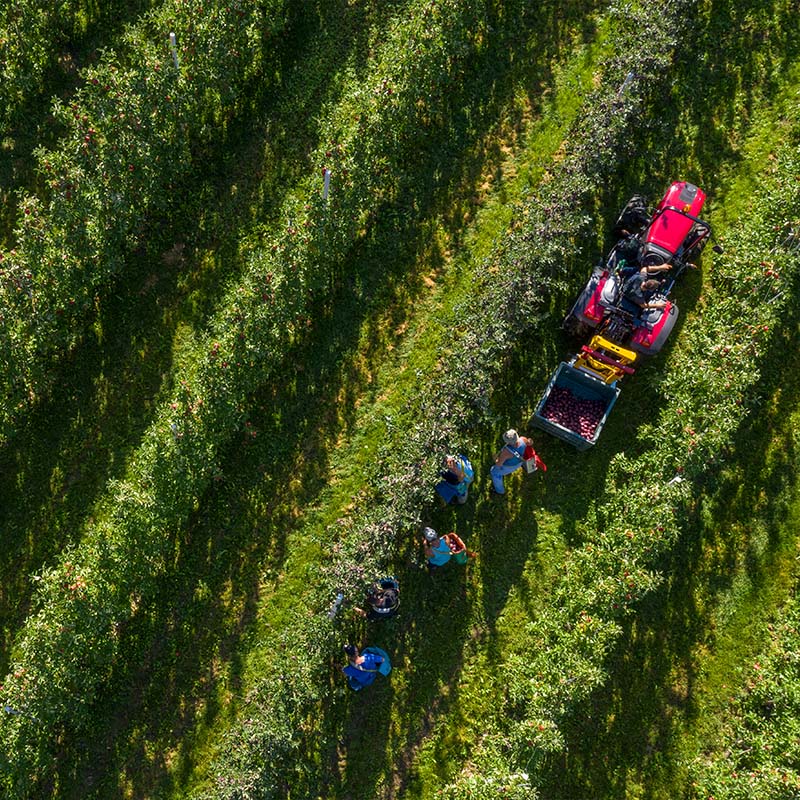

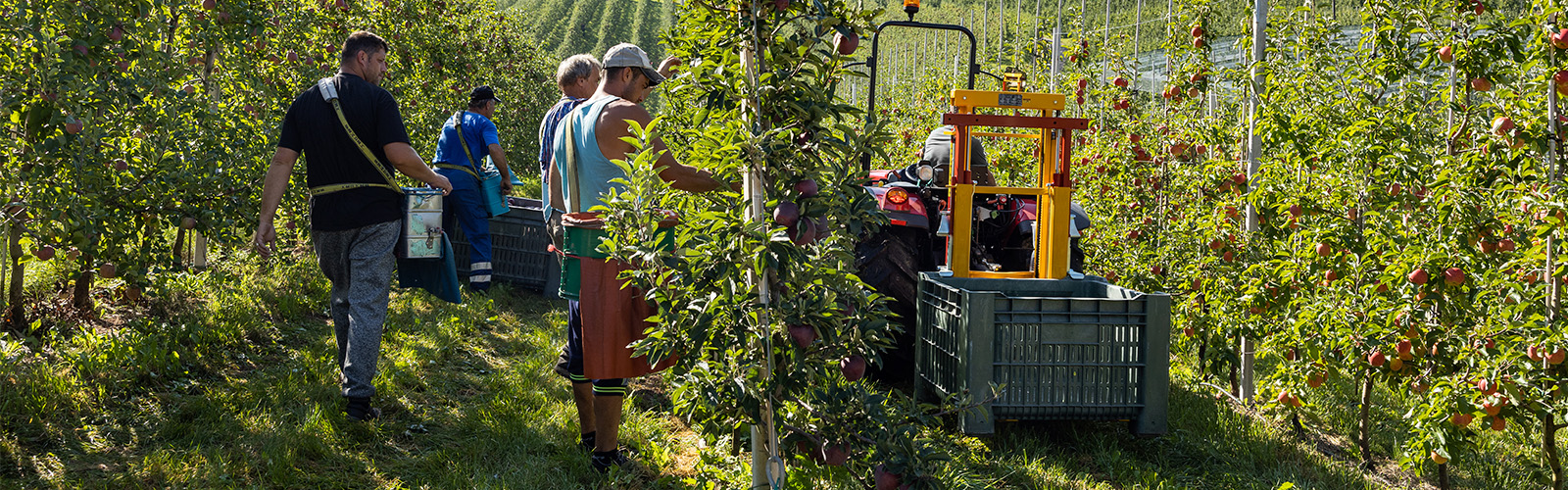

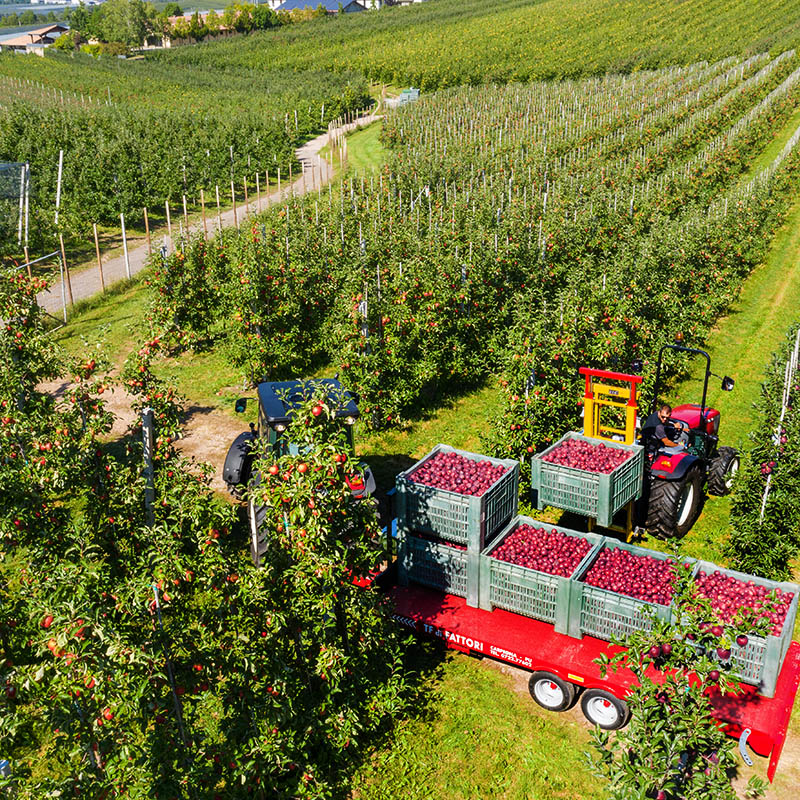

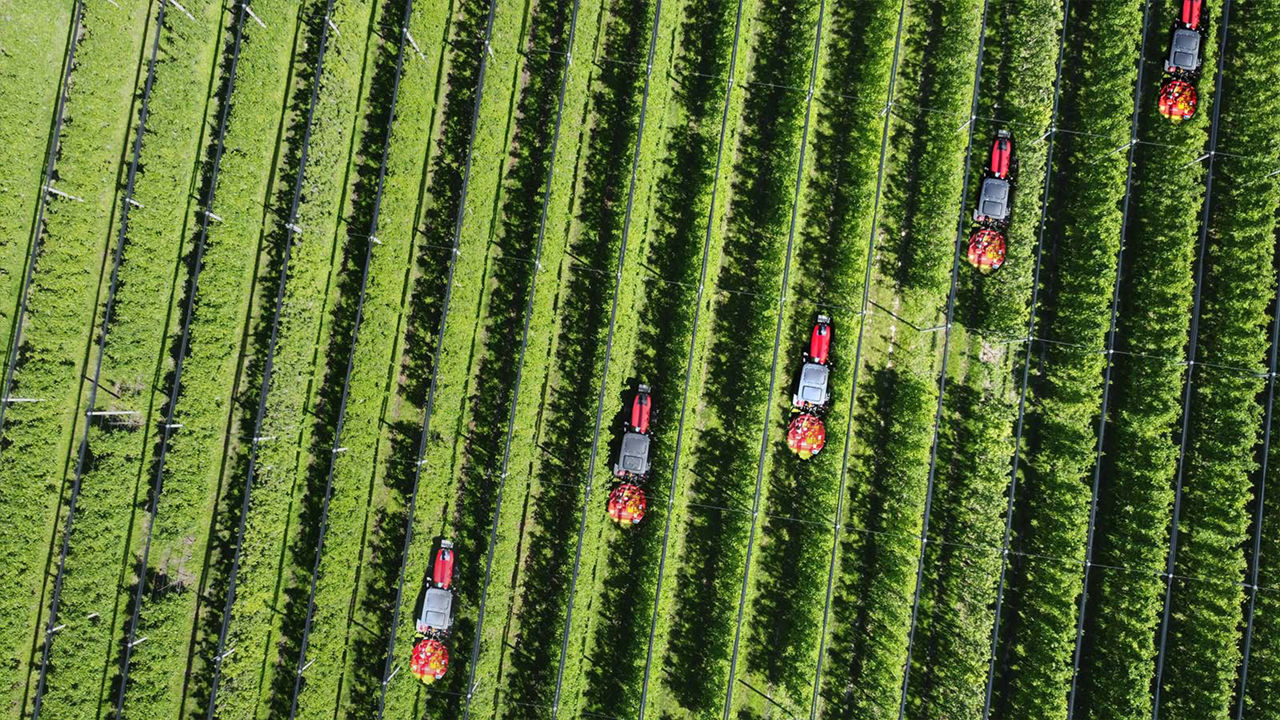

The Valtra F Series is the perfect tractor for specialist jobs such as fruit farms and vineyards. It’s between 1.3 and 1.8 m wide, making it ideal for the narrow passages between your most valuable fruit crops. The specially shaped chassis combined with a front axle enable a 55-degree wheel angle. Tight turns are possible with a 3.6 m radius. The Valtra F Series is a compact machine and its powerful hydraulics allow the use of equally effective implements to make the F Series your working machine for specialist use.

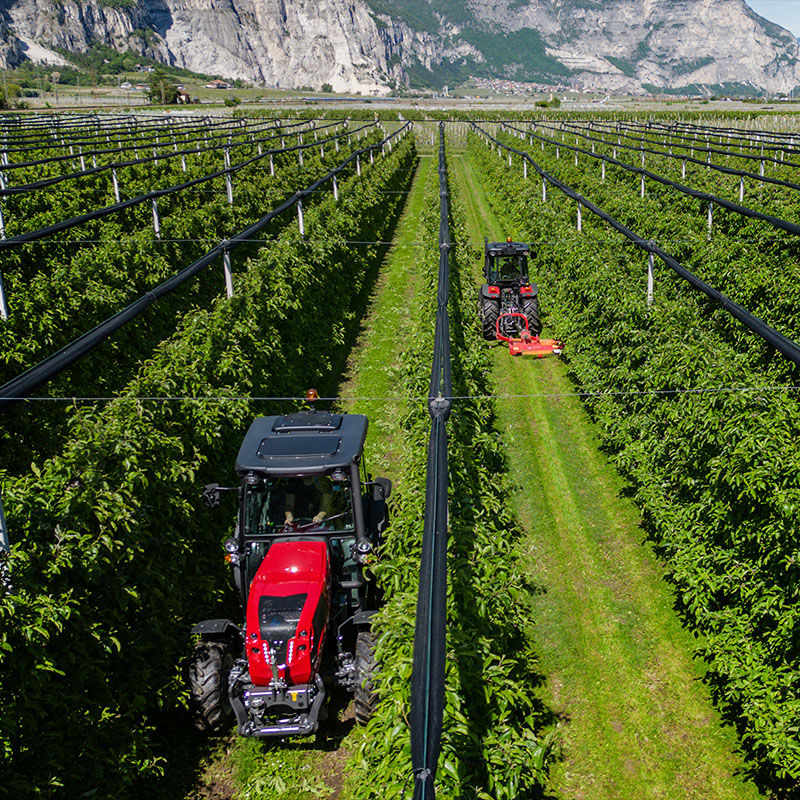

THE RIGHT SIZE FOR THE RIGHT JOB

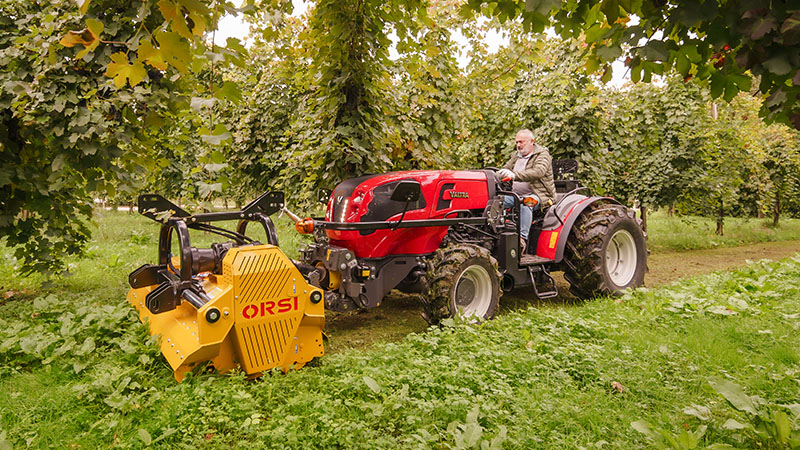

The Valtra F Series comes in three main versions. You can choose a tractor with or without a cab (1.5 - 1.8 m width) or go for the narrow model (1.3 - 1.5 m width) to fit through tighter spaces. Without the cab and with rollover protective structure (ROPS) the machine can be as low as 1.4 m. It is a compact model perfect for the tightest of spaces. To get the perfect fit, a good selection of 24” and 28” rear wheels are available, with corresponding 16” to 20” front wheels.
Request a quote
A TRACTOR THAT HAS IT ALL IN A COMPACT SIZE

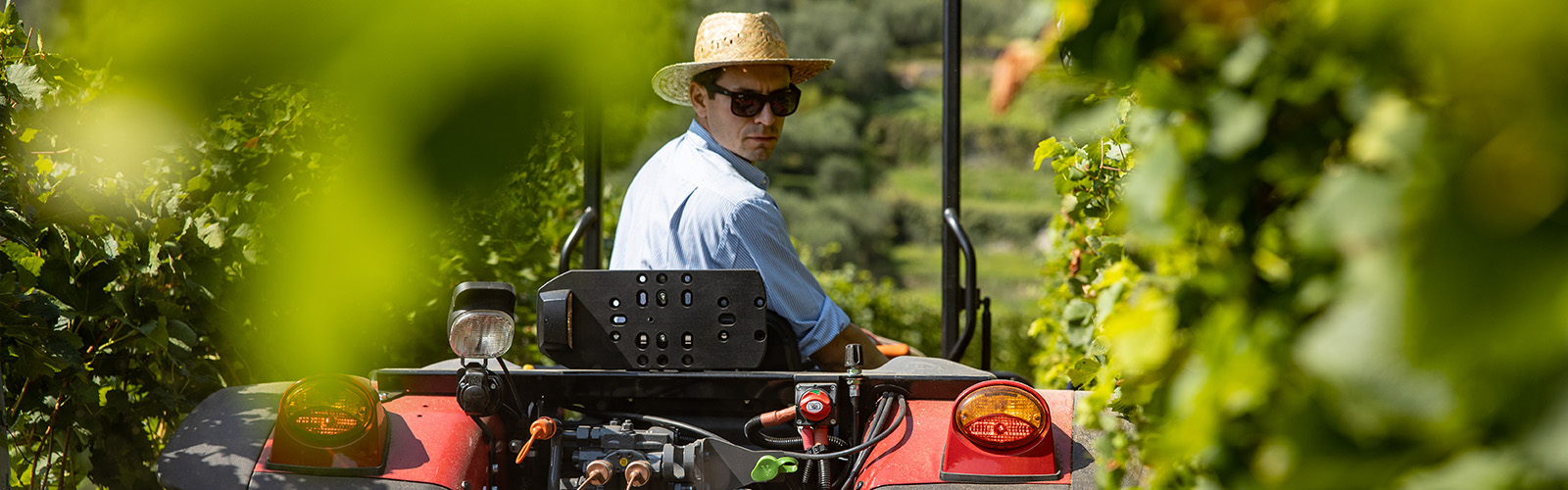

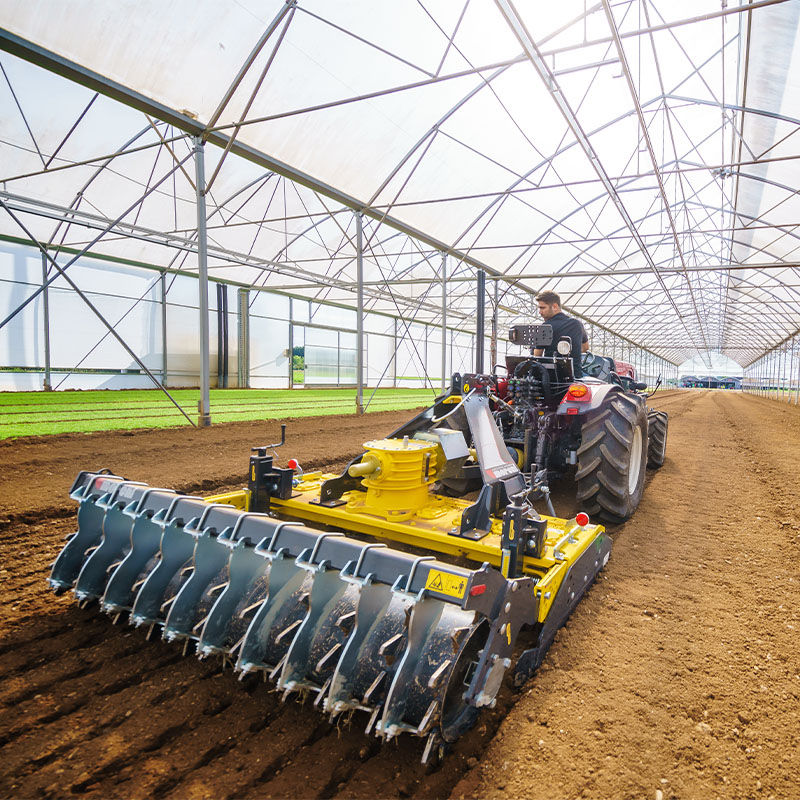

HYDRAULICS TO SERVE DEMANDING IMPLEMENTS
The F Series is a compact tractor with powerful hydraulics that are ideally suited for equally effective implements, making this tractor the perfect working machine for specialist tasks and demanding situations.
The Valtra F Series can be equipped with two or three hydraulic pumps and up to four implement valves. Flow control and mid-mounted quick couplers are available. The F Series has up to three tons power lift capacity

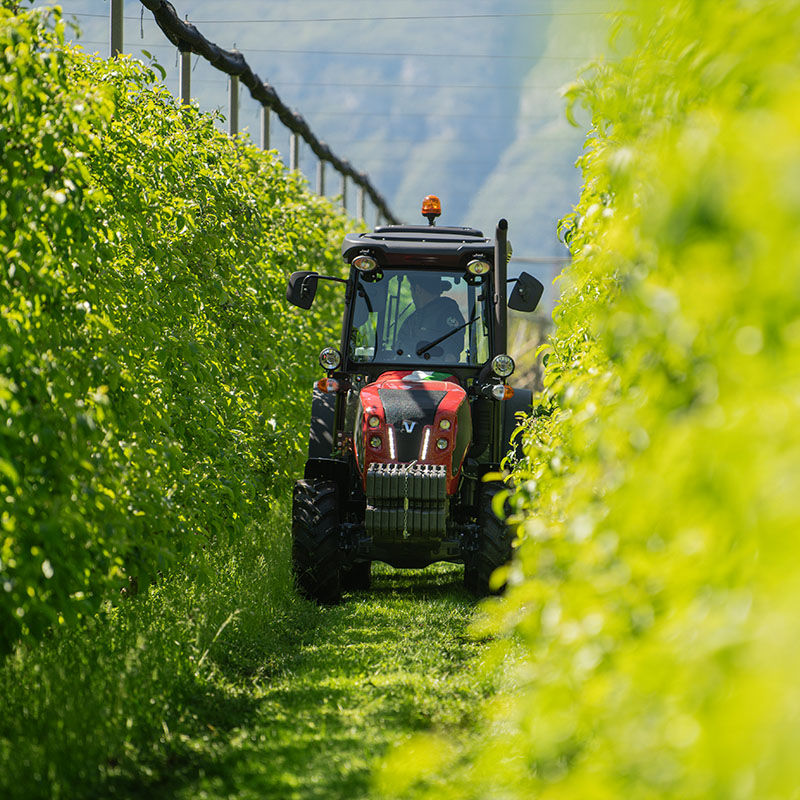

A SMOOTH AND EASY TRANSMISSION
Specialist work requires varied working speeds and the right transmission. The F Series is available with three transmission options. As well as the well-known and cost-effective mechanical 24 + 24R transmission with a synchromesh shuttle which offers the right speed for every task, there is now a 12 + 12R option. For increased comfort and efficiency, the power shuttle 24 + 12R transmission with power shift gear offers unparalleled ease of use in any task.

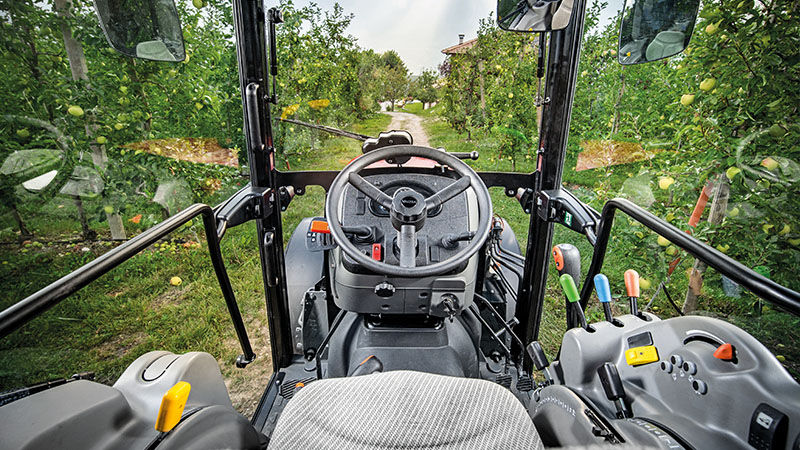

ERGONOMIC AND EFFICIENT CABS

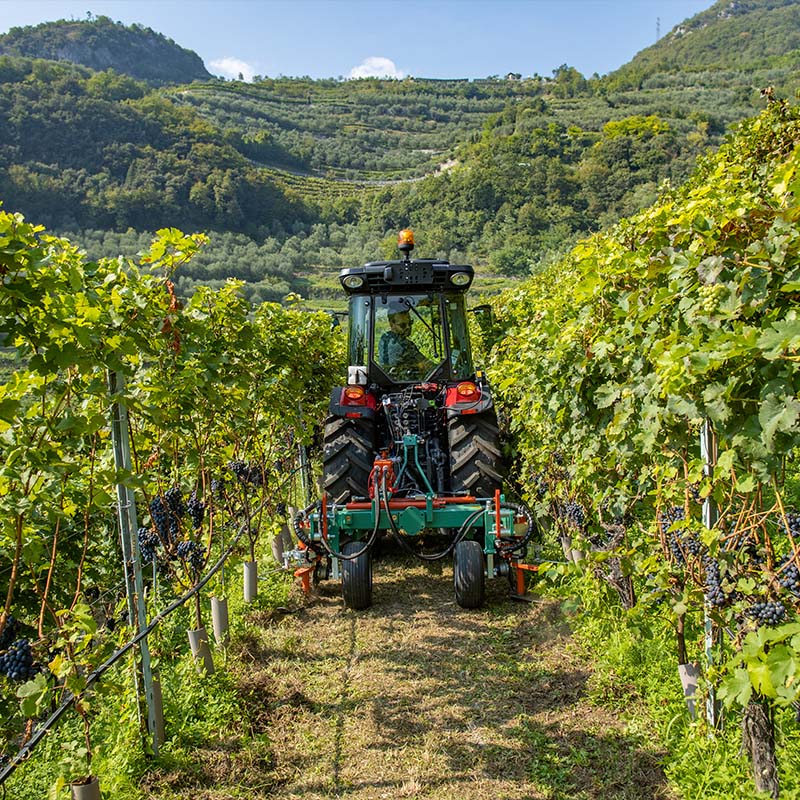

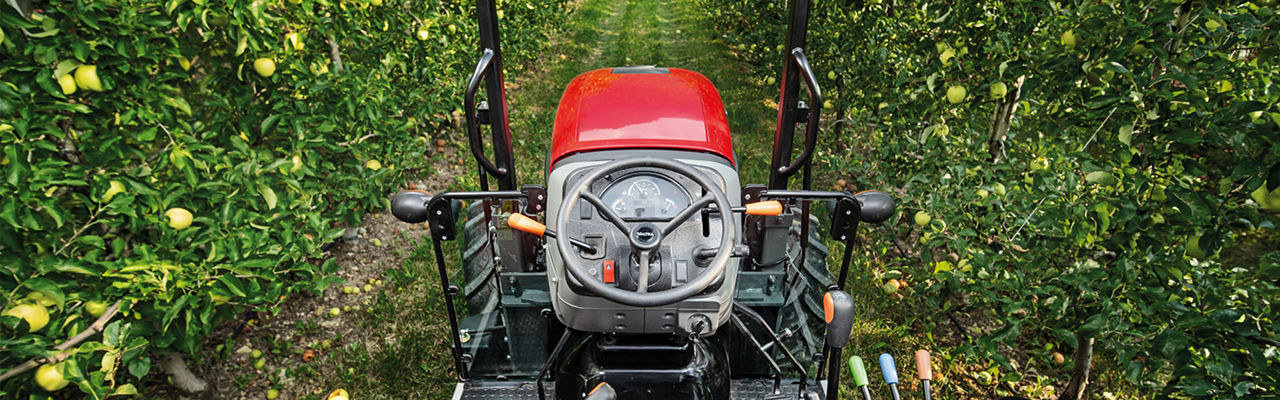

The F Series cabs are perfectly suited for specialist crop operations. The air-conditioned and heated cabs are easy to access and are comfortably ergonomic. The F Series offers great visibility, and controls on the right-hand side. Pneumatic and mechanically suspended seat options are also available. Although compact in size, the cab still offers comfort and operating room for long and efficient workdays.
FEATURES THAT TAKE YOUR SPECIALIST TRACTOR TO THE NEXT LEVEL
F Series models
TECHNICAL SPECIFICATIONS
| Model | Engine | Cylinders/volume | Emission regul. according | Output max | 1.3m narrow cab | 1.3 standard cab or rops | Transmission options | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mechanical shuttle | Mechanical shuttle | Power shuttle | |||||||||
| hp | kW | Nm | Basic | With splitter
|
With 2 PS
|
||||||
| F75 | FPT – F28 EU Stage V | 4 / 2.8 litre | EU Stage V | 75 | 55 | 350 | Opt. | Opt. | 12 + 12R | 24+24R | 24+12R |
| F95 | 95 | 67 | 370 | Opt. | Opt. | 12 + 12R | 24+24R | 24+12R | |||
| F105 | 105 | 75 | 415 | Opt. | Opt. | 12 + 12R | 24+24R | 24+12R | |||
| Model | STD - ROPS | Narrow (Cab) | STD - Cab |
|---|---|---|---|
| Weight without driver and without front ballasts [kg] | 2885 | 3140 | 3250 |
| Front [kg] | 1275 | 1305 | 1365 |
| Rear [kg] | 1565 | 1835 | 1885 |
| Maximum vehicle weight [kg] | 4400 | ||
| Fuel tank capacity [L] | 70 | 75 | 93 |
| PTO nominal speed at engine speed (2 speed PTO) | 540: 1938 1/min ; 540E: 1648 1/min ; 1000: 1962 1/min | ||
| GSPTO speeds: PTO turns for one rotation of rear wheel | 540: 9.077; 540E: 10.670; 1000: 16.605 | ||
| Front axle differential lock | Limited slip | ||
| Wheelbase [mm] | 2154 | 2178 | 2154 |
| Transport length [mm] | 4038 | 4038 | 4038 |
| Tractor width, nominal (real, at narrowest with smallest tyres) [mm] | 1500 (1600) |
1300 (1418) |
1500 (1600) |
| Tyre size corresponding to measures below | 300/70R20 (F) / 420/70R28 (R) | 280/70R18 (F) /380/70R28 (R) | 300/70R20 (F) / 420/70R28 (R) |
| Height cab [mm] | 2478 | 2478 | |
| Height ROPS up /down [mm] | 2653 / 1400 | ||
| Ground clearance [mm] | 270 | 250 | 270 |
| Track width, rear, min /max [mm] | 1114 / 1514 | 955 / 1359 | 1114 / 1514 |
| Tractor width mudguard to mudguard, external (rear, no wideners) [mm] | 1450 | 1080 | 1450 |
| Axle width, FRONT, flange to flange [mm] | 1326 | 990 | 1326 |
| Axle width, REAR, flange to flange [mm] | 1234 | 972 | 1234 |

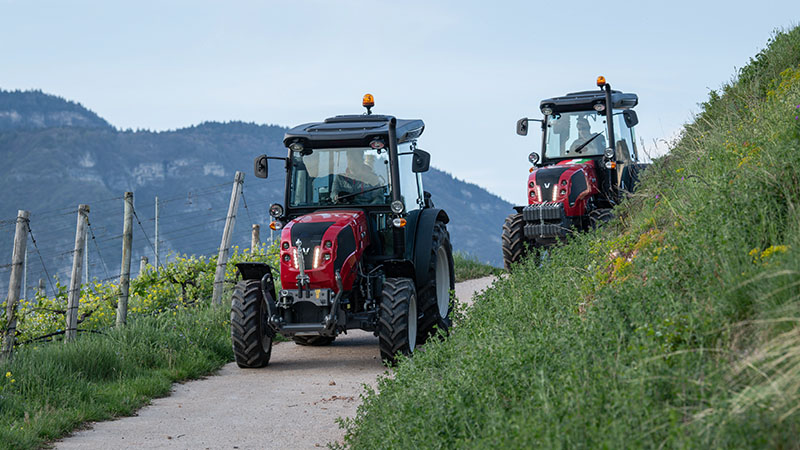

| Standard open with ROPS | Narrow cab | Standard cab |
|---|---|---|

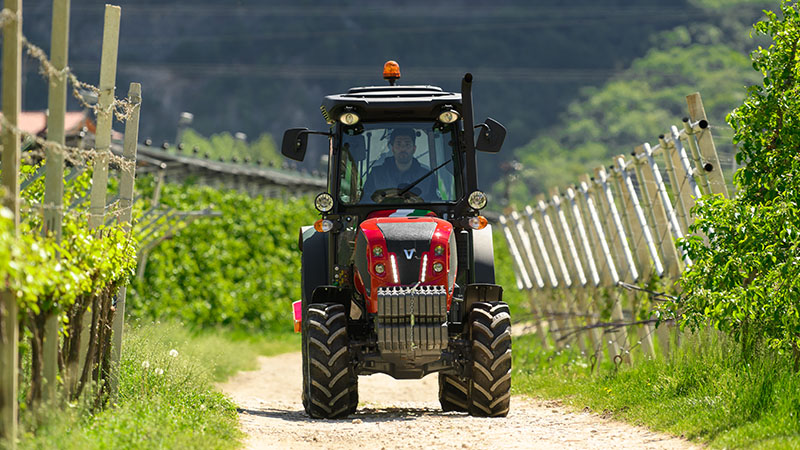

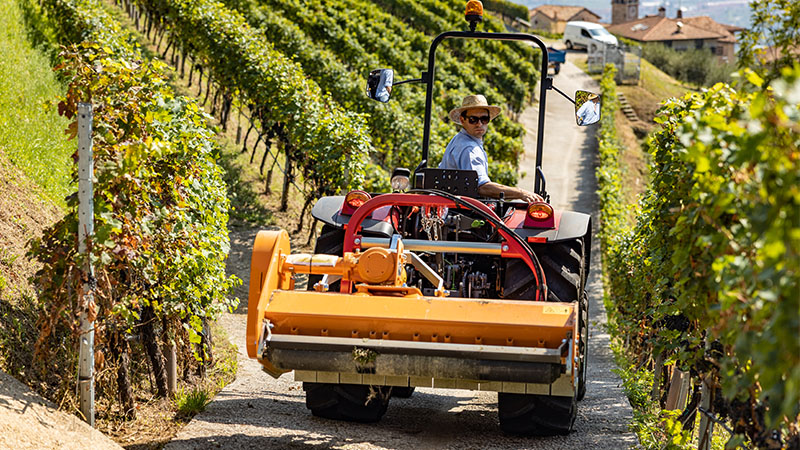

| Open operating station (ROPS) | Narrow cab model | Standard cab model |
| Nominal width 1.5 m | Nominal width 1.3 m | Nominal width 1.5 m |
| Low and compact for fruit farms | Right size for vineyards | Right size for fruit farms |

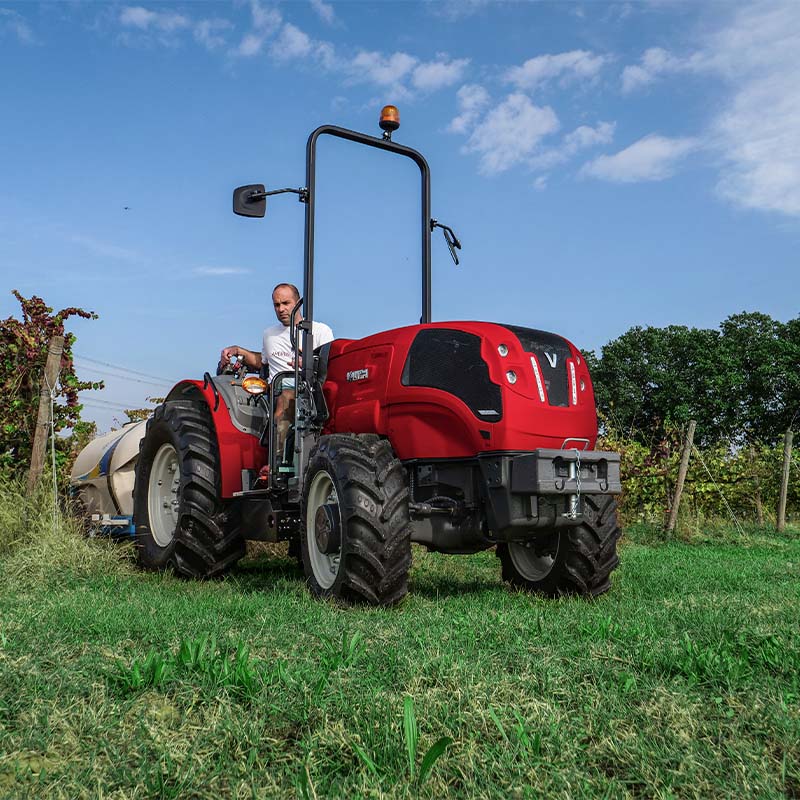

| Lowest point 1.4 m (ROPS down) | Cab model only |
